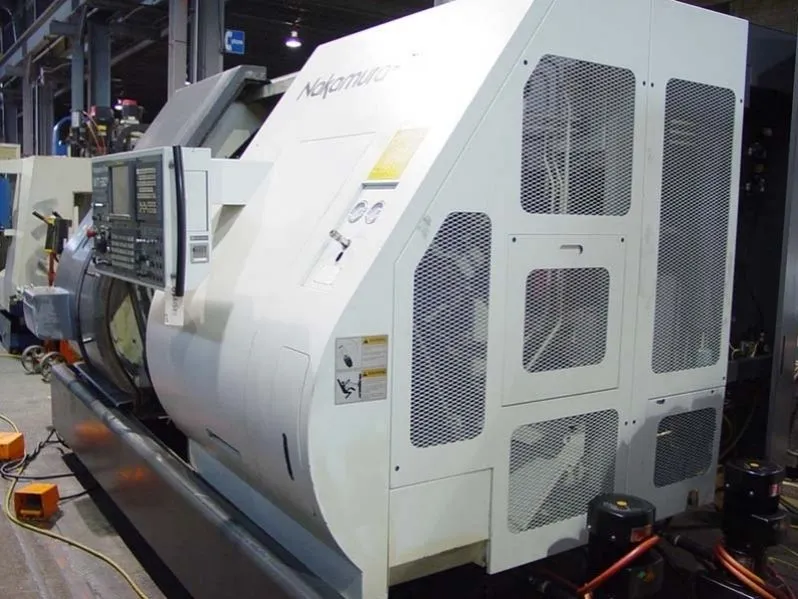

NAKAMURA TOME WT-300 8-AXIS CNC TURNING/MILL CENTER
Have one to sell?
ConditionUsed
1 available
Bar-Capacity...................................................... 2.55"
Max Swing Over Slant Bed ................................ 12.2"
Max Turning Capacity......................................... 10.6"
Max Machinable Center Distance........................ 30.7"
Cross Travel (X-Axis) Upper Turret............... 7.6"
Lower Turret......................... 7.6"
Longitudinal Travel (Z-Axis) Upper Turret............. 30.7"
Lower Turret......................... 30.77"
Y-Axis Travel Upper Turret Only........................... 2.36"
B-Axis Sub-Spindle Slide................................... 33.46"
C-Axis on Both Spindles.................................... .001 Degree
Tool Positions (12 on Each Turret)....................... 24 Total
Spindle Bore ..................................................... 3.1"
Spindle Nose .................................................... A2-6
Spindle Speed Range ........................................ 50-4500 RPM
Spindle Horsepower........................................... 20 HP
Live Tooling Speed Range.................................. 90-4000 RPM
Live Tooling Horsepower..................................... 5 HP
Approximate Machine Dimensions....................... 166" x 100"
Approximate Machine Height............................... 89"
Approximate Machine Weight.............................. 28,000 LBS
FANUC 18iTB CNC Control, Upper and Lower Turrets, Live Tooling in
Both Turrets, Y-Axis on Upper Turret, Main Spindle and Sub-Spindle,
C-Axis on Both Spindles,
LNS S3 Bar-Feeder, Parts Catcher,
Chip Conveyor and Coolant System.
Tooling Package including 3 Driven Tools and 11 Static Holders.
