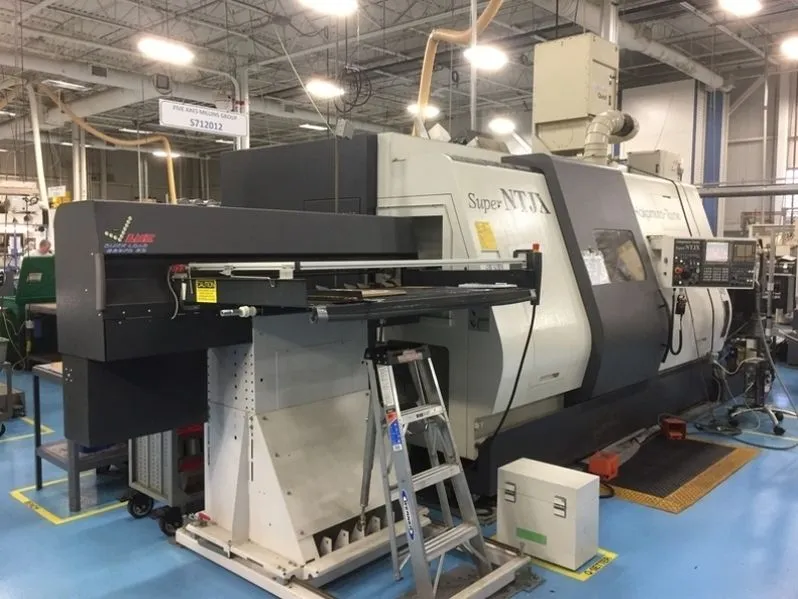

NAKAMURA TOME Super NTJX (10 Axis Turning)
Multi Axis Turning Centers
| # Axis | 8 |
| Machining Length | 1,400 mm |
| Chuck Size | 8" |
| Bar Capacity | 65 mm |
| Power | 18.5 kW |
| Max RPM | 8,000 RPM |
| Turning Dia | 390 mm |
| Control | CNC (Fanuc 31i-A 2 Path) |
Fanuc 31i-A 2 Path
LNS S-3 Servo Barfeed,
80 ATC,
SMW 8.9” chuck,
2.625 Full Bar Capacity
ATS 3J Collet Chuck (Main),
ATS 3J Collet Chuck (SUB),
Tool Setters (Both Spindles),
2560m Memory,
1000 PSI Coolant Pump.
Chip Conveyor,
Parts Catcher,
Blum laser (model CEI-A2-K),
Renishaw Probe,
Multiple live tooling and tooling blocks for lower turret,
Code generator
Right angle drill units ( 5 of them)
Left hand ½ Index unit (2 of them)
Right hand ½ index unit ( 2 of them)
