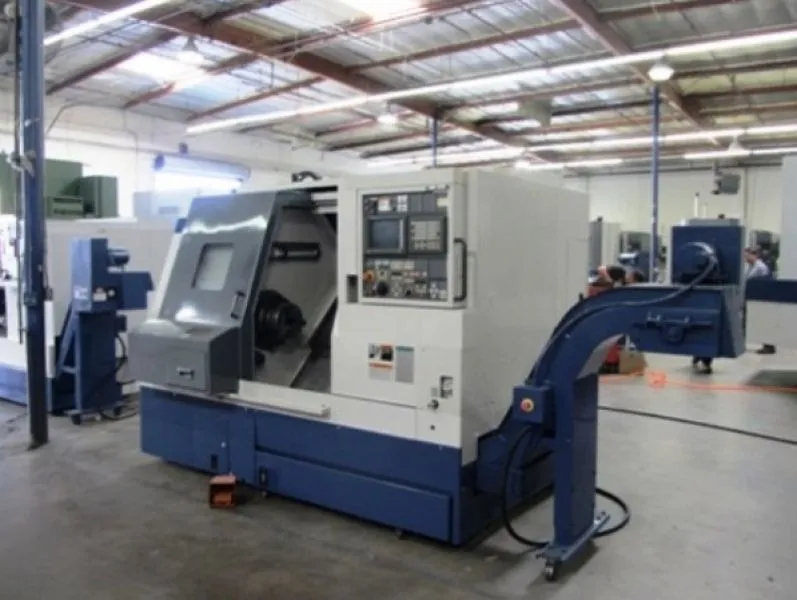

Mori Seiki SL-300AMC/700 CNC Lathe 1996

Swing over bed 28.1”

Swing over cross slide 19.7”

Between centers 29.3”

Max. turning dia. 16.5”

Standard turning dia. 10.2”

Max. turning length 28.3”

Bar work capacity 2.9”

Travels (X-axis) 9.8”

Travels (Z-axis) 31.5”

Spindle speed range 3500 RPM

Spindle nose A2-8

Through spindle dia. 3.4”

Tool stations 12

Tailstock travel 22.4”

Tailstock spindle dia. 4.3”

Taper hole of tailstock spindle MT5 Live center

Tailstock spindle travel 5.9”

Rapid traverse X: 590.5 IPM / Z 944.9 IPM

Spindle motor 20 HP

Coolant tank capacity 55 gal

Dimensions 107.6” x 73.4” x 80.5”

Weight 14,740 lbs
