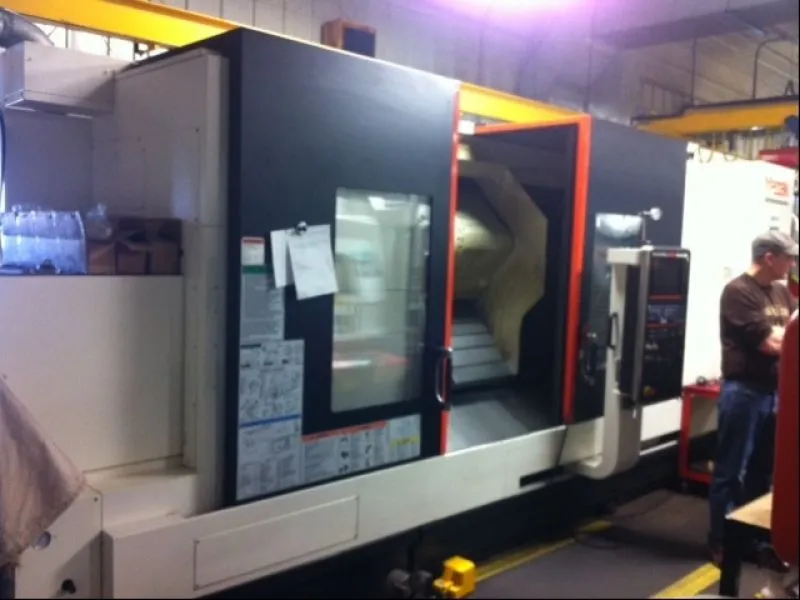

MAZAK STN-500M (80") CNC MULTI-AXIS TURNING CENTER
Have one to sell?
ConditionUsed
1 available
Maximum Swing Over Bed 40.9"
Maximum Machining Dia. 36"
Swing Over The Carriage 29.4"
Maximum Machining Length 80”
Number Of Gear Ranges 2
Spindle Nose A2-15"
Spindle Bore 7.28"
Spindle Speed 1600 RPM
X- Axis Travel 18.25"
Z- Axis Travel 80”
C- Axis 360,000 N/C CONTOURING
Rapid Traverse Rate X-787 IPM/Z-945 IPM
Mill Spindle HP 15 HP AC
Mill spindle RPM 6000
Turret Positions 12
Turret Index Time .5" Sec.
Tailstock Body Travel 82”
Main Motor 60 HP AC
Machine Weight 41,667 LBS.
MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
EIA/ISO PROGRAMMING / 12.1" COLOR MONITOR
21" 3 JAW HYDRAULIC KITAGAWA CHUCK
NETWORK INTERFACE
185MM (7.1")SPINDLE BORE
CHUCK OPEN CLOSE
HYDRAULIC PRESSURE INTERLOCK
RETHREAD
THREAD CUTTING FUNCTION
ABSOLUTE POSITIONING
MULTI TAP TRANSFORMER
PROGRAMMABLE BODY AND QUILL TAILSTOCK # 6
PROGRAMMABLE STEADY REST BASE
CHIP CONVEYOR
ALL AVAILABLE MANUALS
ALL AVAIABLE TOOL HOLDERS
