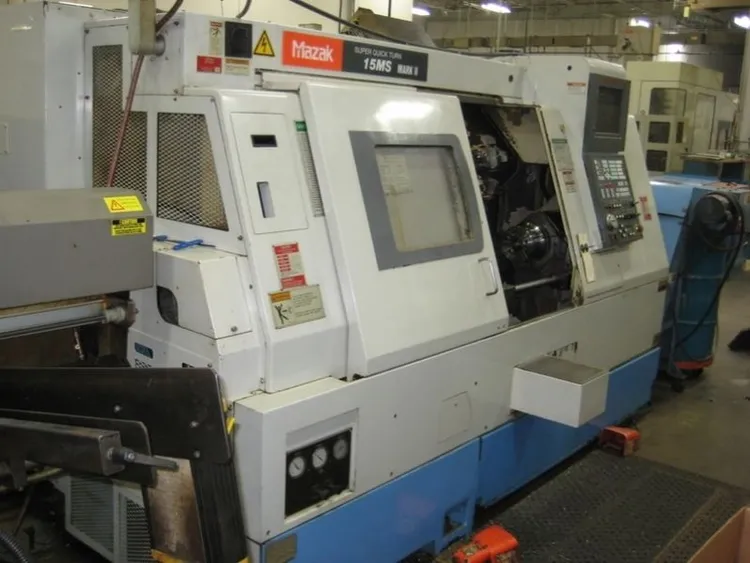

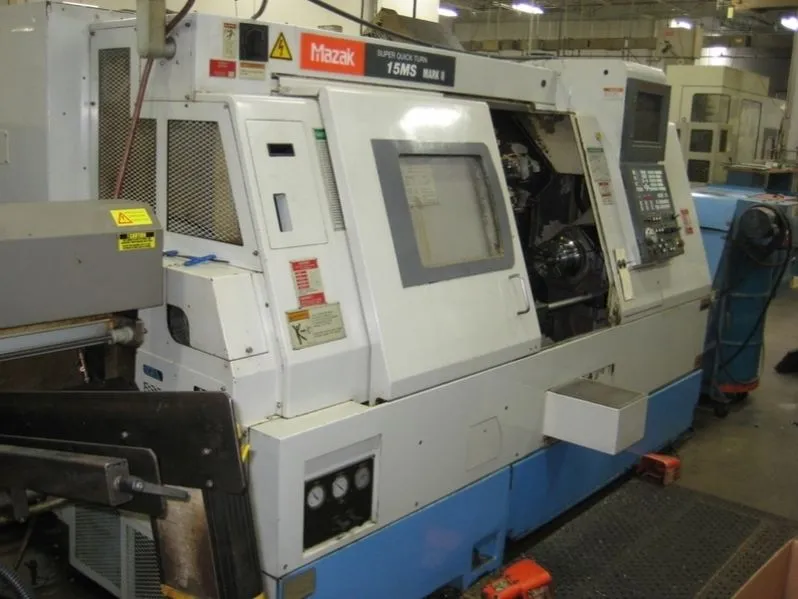

MAZAK SQT-15MS Multi-Axis Turning Ctr.

Maximum Swing.............................. 20.91"

Maximum Cutting Diameter........... 11.75"

Maximum Bar Diameter................... 2.0"

Main Spindle:

Spindle Nose......................... A2‑6

Spindle Bore.......................... 2.4"

Spindle Speed....................... 35‑5,000 RPM

Spindle Indexing (C‑Axis)............. .001 deg./

360,000 pos.

Spindle Horsepower (30 Min)........... 25 H.P.

Spindle Torque........................ 245 ft.‑lbs.

Second Spindle:

Spindle Nose......................... A2‑6

Spindle Bore.......................... 1.22"

Spindle Speed....................... 180‑5,000 RPM

Spindle Synchronization............... STD

Maximum Synchronized Speed............ 4,000 RPM

Recommended Synch. Transfer Speed..... 300 RPM

Spindle Indexing (Mech. Lock)......... 5 deg./72 pos.

Spindle Horsepower (10 Min)........... 10 H.P.

Type of Turret............................. Dodecagonal drum

Number of Tools (Rotary Avail/all pos.).... 12/Modified VDI

Mill Spindle:

Spindle Speed......................... 120‑3,000 RPM

Spindle Horsepower.................... 5.0 H.P.

X‑Axis Stroke.............................. 7.12"

Z‑Axis Stroke.............................. 22.75"

B‑Axis Stroke.............................. 23.25"

Rapid Traverse X/Z Axis........... 1180 IPM

Rapid Traverse C‑Axis.............. 400 RPM

Rapid Traverse B‑Axis.............. 708 IPM

Floor Space (L x W x H)............ 122.6" x 63.4"

Total Weight............................... 11,135 lbs.
