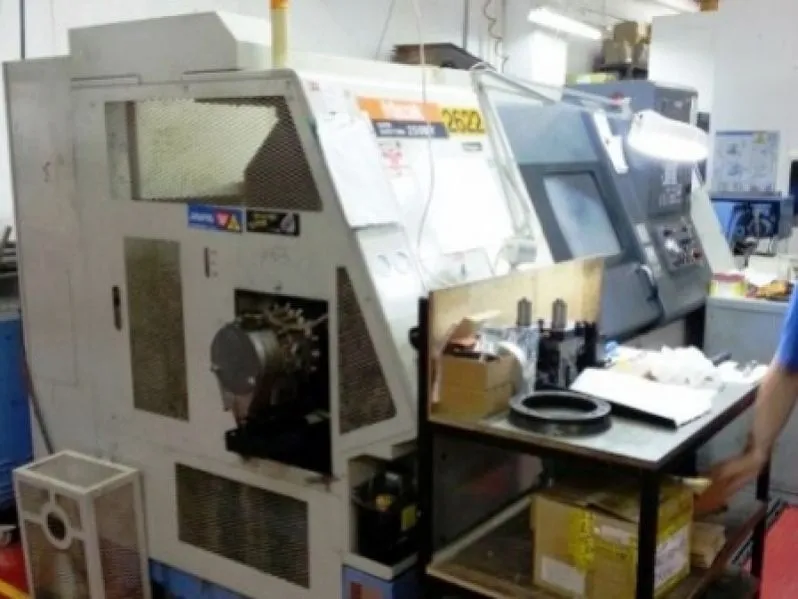

MAZAK SQT 250MY CNC 4-AXIS TURNING CENTER LATHE 2001

Max. Swing 20.67

Max. Cutting diameter 11.81"

Max. Cutting length 19.6"

Max. Bar diameter 3"

Main Spindle:

Spindle Nose A2-8

Spindle Bore 3.46"

Spindle Speed 35-4,000 RPM

Spindle indexing (C-Axis) .001 deg/360,000 Pos.

Spindle Horsepower (30 Min)30 HP

Spindle torque 259 ft./lbs

Turret:

Type of turret Dodecagonal drum

Turret index time (sec.) 0.2/1 0.6/full turn

Number of tools (Rotary avail/all pos) 12/modifed VDI

Spindle speed 25-4,500 RPM

Milling horsepower 5 HP

Axis Travels:

X-Axis 7.125"

Y-Axis 4 +/- 2.0"

Z-Axis 22.75"

Rapid traverse X/Z Axis 1181 IPM

Rapid traverse Y-Axis 472 IPM

Rapid traverse C-Axis 400 IPM

Machine Floor Space 121"x70"x79"

Machine weight (approx) 12,100 lbs.
