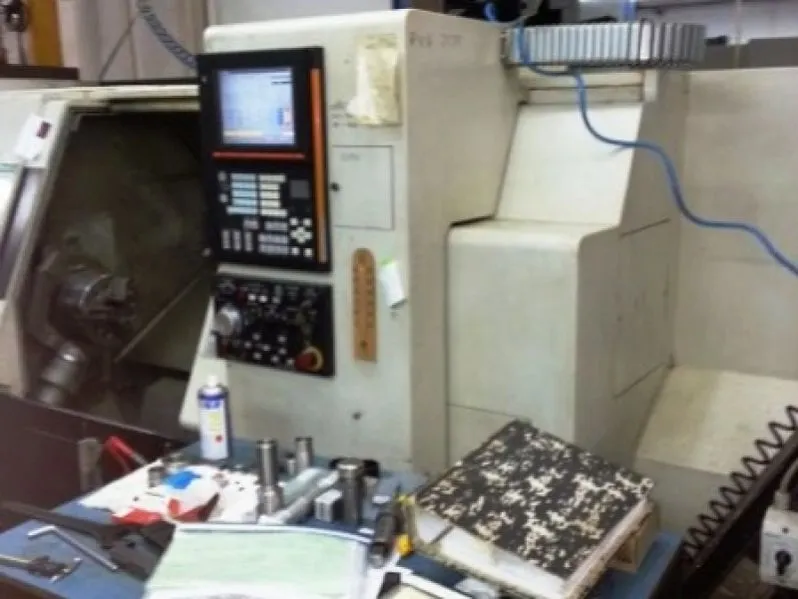

MAZAK SQT 250M CNC 3-AXIS TURNING CENTER 2004
Have one to sell?
ConditionUsed
1 available
Max. Swing 20.67
Max. Cutting diameter 11.81"
Max. Cutting length 39.6"
Max. Bar diameter 3"
Main Spindle:
Spindle Nose A2-8
Spindle Bore 3.46"
Spindle Speed 35-4,000 RPM
Spindle indexing (C-Axis) .001 deg/360,000 Pos.
Spindle Horsepower (30 Min) 30 HP
Spindle torque 259 ft./lbs
Turret:
Type of turret Dodecagonal drum
Turret index time (sec.) 0.2/1 0.6/full turn
Number of tools (Rotary avail/all pos) 12/modifed VDI
Spindle speed 25-4,500 RPM
Spindle horsepower 25 HP
Max. Drill 3/4"
Max. End Mill 3/4"
Max. Tap (Main spindle) 1/2 UNC
Axis:
Z-Axis 22.75"
Rapid traverse X/Z Axis 1181 IPM
Rapid traverse C-Axis 400 IPM
Tailstock Spindle Center MT #5
Machine Floor Space 121"x70"x79"H
Machine Weight (Approx) 12,100 Lbs
Mazatrol Fusion 640T CNC Control
C-Axis
Live tool Turret 12 positions
10" 3-Jaw Chuck
Milling spindle synchronize tapping
Hi-Power coolant (1.1 kw)
Operation end light
Chip Conveyor side disposal hinge
Eia/Iso package
Chuck open/close confirmation
2 Pcs Boring Bar Holder
2 Pcs V-Type Milling Holder Dia. 20mm 4500 RPM
2 Pcs H-Type Milling Holder Dia. 20mm 4500 RPM
3 Pcs Boring Bar Socket (12,16,20)
Over load detection
Coolant Temp. Control
Coolant System
Splash Guards
