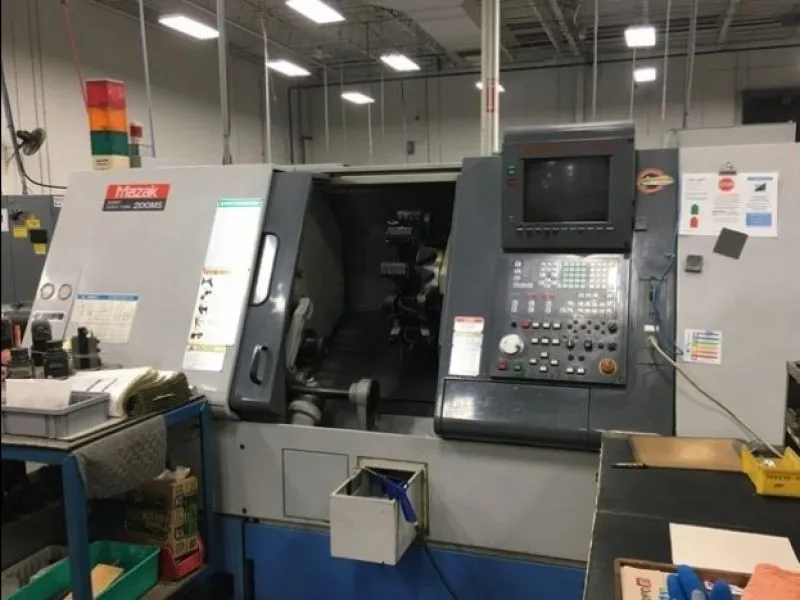

Mazak SQT 200MS II Multi Axis CNC Turning

Maximum Swing............................. 20.67"

Maximum Cutting Diameter.................. 11.81"

Maximum Bar Diameter...................... 2.0"

Maximum Distance Between Spindle’s........ 22.7"

Main Spindle: Spindle Nose......................... A2‑6

Spindle Bore......................... 2.4"

Spindle Speed........................ 35 ‑ 5,000 RPM

Spindle Indexing (C‑Axis)............ .001 deg. /360,000 pos.

Spindle Horsepower (30 Min).......... 25 Hp

Second Spindle: Spindle Nose......................... A2‑6

Spindle Bore......................... 1.73"

Spindle Speed........................ 35 ‑ 5,000 RPM

Spindle Indexing (Mech. Lock)........ 5 deg./72 pos.

Spindle Horsepower (10 Min).......... 10 Hp

Type of Turret............................ Dodecagonal Drum/Non‑Lift

Number of Tools (Rotary Avail/all pos.)... 12 / Modified VDI

Mill Spindle: Spindle Speed........................ 25 ‑ 4,500 RPM

Spindle Horsepower................... 5 Hp

X‑Axis Stroke............................. 7.5"

Z‑Axis Stroke............................. 22.625"

B‑Axis Stroke............................. 23.0"

Floor Space (L x W x H)................... 119.7" x 66.8"x 78.7"

Total Weight.............................. 11,330 lbs.
