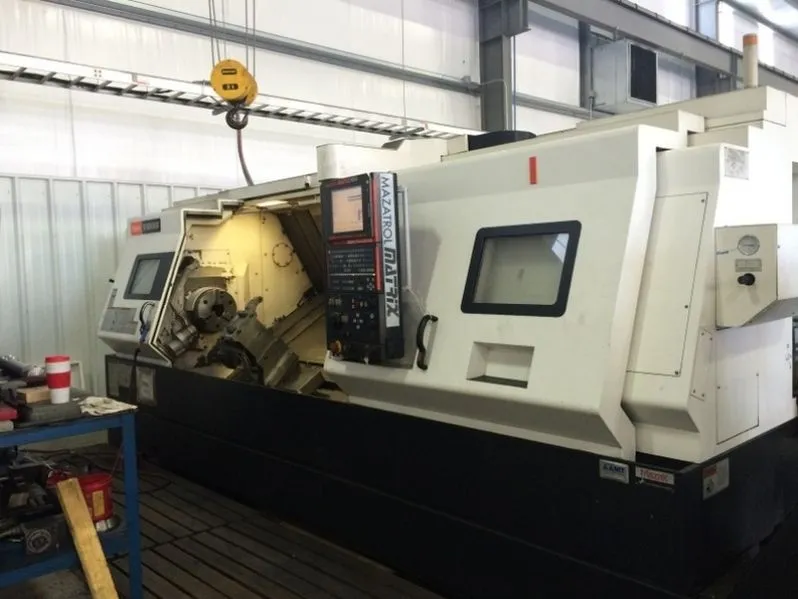

Mazak Quick Turn Nexus 350-IIM 80" w/Milling & Programmable Steady Rest CNC Lathe
Have one to sell?
ConditionUsed
1 available
Bar Capacity........................................................................ 4.0”
Maximum Swing................................................................ 26.77”
Maximum Machining Diameter.............................................. 16.54”
Maximum Machining Length................................................. 81.08”
X Axis Travel.................................................................... 10.13”
Z Axis Travel.................................................................... 82.50”
C Axis Indexing...................................................... 0.0001 Degree
Spindle Speed.............................................................. 3,300 RPM
Spindle Bore........................................................................ 4.4”
Spindle Nose..................................................................... A2-11
Spindle Motor..................................................................... 40 HP
Rotary Tool Spindle Speed............................................. 4,000 RPM
Number of Tool Positions.......................................................... 12
Approx. Machine Weight............................................... 17,500 Lbs.
Mazatrol Matrix Nexus CNC
Multi Tap Transformer
Tool Eye Automatic
Kitagawa 12” Chuck
Milling Spindle Synchronous Tapping
213 PSI High-Power Coolant
12 Position Drum Turret
EIA/ISO Input Function
User Macro (Common Variables: 600 Pairs)
Coolant Temperature Control System
SMW Steady Rest Single/Auto
LAN Port
USB I/F (2-Port)
Split Boring Bar Holder 2” For VDI Turret
Chip Conveyor
Re-Threading
Signal Tower
Windows XP Operating System
Tailstock
All Available Tooling & Manuals
