Mazak QTN350-II MY CNC Lathe 2011
Have one to sell?
ConditionUsed
1 available
Spindle Bore 4.4”
Max Swing 29.5”
Chuck Size 12”
Bar Capacity 4”
Spindle Nose A2-11
Spindle Motor 3300 RPM
Turret Positions 12 Tools All Live
Turret Style VDI Quick Change Style
Milling Motor 4000 RPM 10HP 68.7 ft.lbs
Max Machining Length 60.7”
X-Axis 10.13”
Y-Axis 6.00”
Z-Axis 63.25”
Dimensions 155.5” x 80.7” x 78.7”
Weight 17,416 lbs

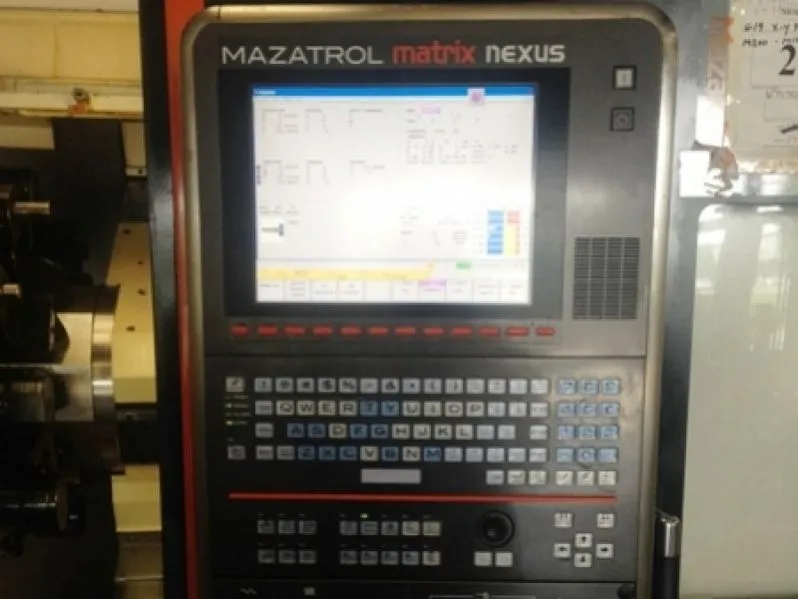

Mazatrol Matrix Nexus CNC
· Absolute Positioning Sys
· Conversational and EIA (G-code) Programming
· USB I/F (2-Port)
· User Macro
· Mazak Tapping/Boring Tornado
Re-Thread Function
Chip Conveyor
Automatic Tool Length Measurement
Full Y-axis Milling
Full C-axis Contouring
213 PSI High Pressure Coolant
Tailstock
SMW Steady Rest SLUA3.1
