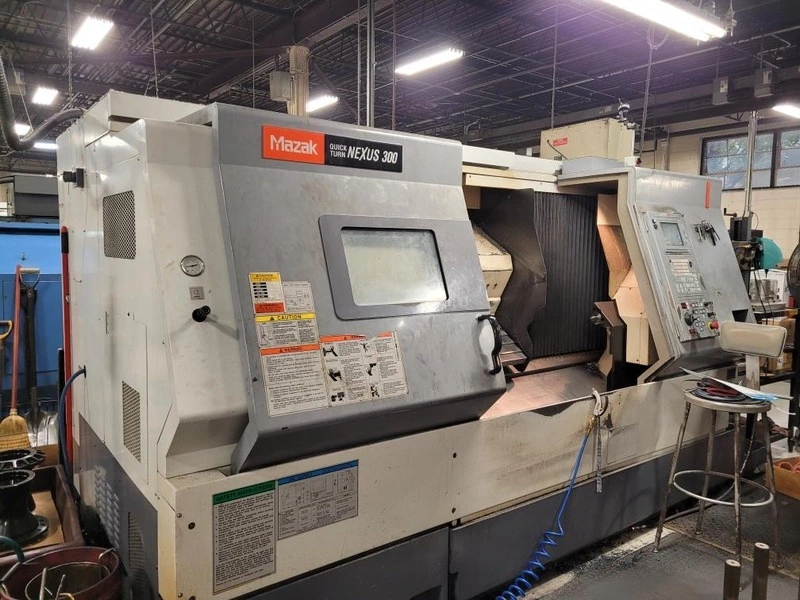

MAZAK QTN-300 NEXUS

Standard Chuck Diameter............ 12"

Maximum Swing........................... 29.5"

Maximum Turning Diameter......... 16.5"

Spindle Motor............................... 35 HP

Spindle Bore................................ 3.46"

Standard Bar Capacity................ 3"

Spindle Speed............................ 4000 RPM

Spindle Nose................................ A2-8

Turret Type................................. MODIFIED VDI

Number of Tools......................... 12

O.D. Tool Size............................ 1"

I.D. Tool Size.............................. 2"

Standard Mill Spindle Speed................ 4500 RPM

Optional Mill Spindle Speed................. 2000 RPM High Torque

Mill Spindle Power....................... 10 HP

Turret Index Time......................... 0.2 sec. (1 pos)

X-Axis Travel............................... 10.13"

Z-Axis Travel............................... 48.75"

Rapid Traverse Rates X-Axis................. 1181 IPM

Rapid Traverse Rates Z-Axis................. 984 IPM

Tailstock Center...................... MT NO.4

Machine Weight...................... 16,314

Machine Height........................ 78.7"

Floor Space Requirements ….. 135.8" x 80.7"
