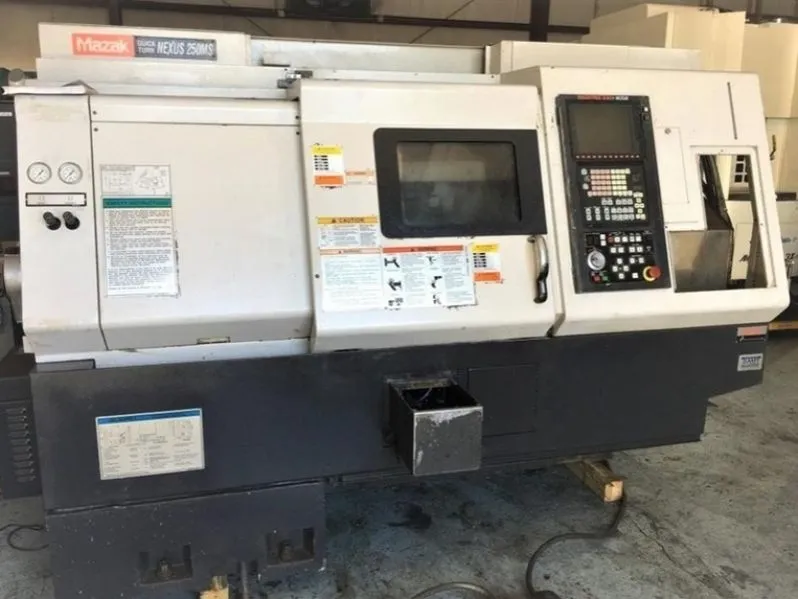

MAZAK QTN-250MS NEXUS with FUSION 640 control
Have one to sell?
ConditionUsed
1 available
Chuck Size:
10" Main / Collet Sub
Maximum Swing:
26.58"
Maximum Machining Diameter:
14.75"
Maximum Bar Capacity:
3"
X-Axis Travel:
9"
Z-Axis Travel:
22.63"
B Axis Travel - Subspindle:
23"
C Axis Indexing Main / Subspindle:
.001 / .001 index
Spindle Nose / Spindle Bore:
A2-8" / 3.46"
Spindle Speed:
4,000 RPM
Spindle Motor:
35 HP
Sub Spindle Speed / HP:
6,000 RPM / 10 HP
Rotary Tool Speed / HP:
4,500 RPM / 7.5 HP
Turret Type:
12 Pos VDI Trt
Rapid Traverse Rates X, B / Z:
1181 / 1299 IPM
Machine Dimensions LxWxH:
115" x 70" x 72"
Machine Weight:
11,500 lbs
Full C Axis Main Spindle Rotation
Milling/Drilling Capability
All 12 Stations Capable of Live Tooling
10" 3 Jaw Hydraulic Chuck on Main Spindle
Subspindle
Collet Chuck on Subspindle
Subspindle (B-Axis) 0.001 Index Only
Chip Conveyor
Automatic Parts Catcher
3.5" Floppy Disk Drive
Chuck Open/Close Confirm
Chuck Air Blast (Main Spdl)
Automatic Tool Eye
Operator Door Interlock
Auto Chuck Jaws Open/Close
10.4" Color LCD Sceen
(2) Axial Live Tool Holders
All Available Static Tooling
All Available Manuals
