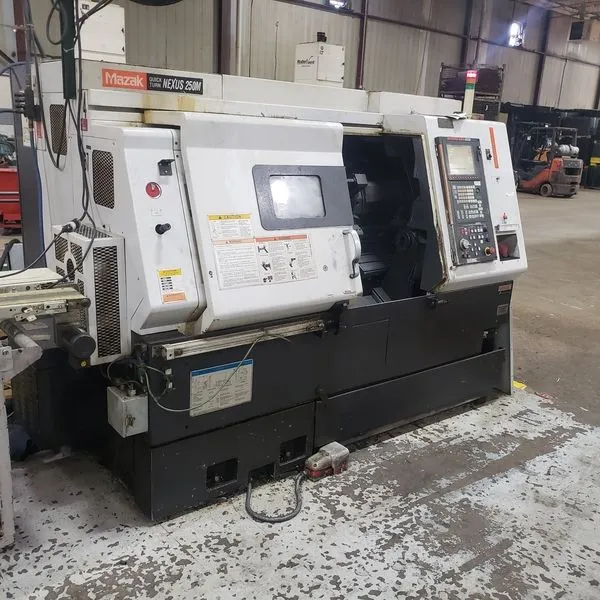

MAZAK QTN-250M 3-Axis Turning Center
Have one to sell?
ConditionUsed
1 available
SWING OVER BED: 26.6"
SWING OVER CARRIAGE: 13.8"
MAXIMUM CUTTING DIAMETER: 15"
MAXIMUM CUTTING LENGTH: 39.9"
X AXIS TRAVEL: 9.1"
Z AXIS TRAVEL: 42.7"
SPINDLE SPEEDS: 4000 RPM
SPINDLE MOTOR: 35 HP
SPINDLE BORE: 3.5"
BAR CAPACITY: 3.1"
SPINDLE NOSE: A2-8
CHUCK SIZE: 10"
TOOL TURRET POSITIONS: 12
ROTARY TOOL SPINDLE SPEEDS: 4500 RPM
ROTARY TOOL SPINDLE MOTOR: 7.5 HP
TAILSTOCK TRAVEL: 41.3"
POWER: 208V/3P/60Hz
OAD (APPROXIMATE): 137" X 75" X 74" HIGH
WEIGHT (APPROXIMATE): 14,000 LBS.
MAZAK MAZATROL FUSION 640 CONTROL
10" KITAGAWA 3-JAW CHUCK
12 POSITION TOOL TURRET
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
LIVE TOOLING (3 LIVE TOOL HOLDERS)
TOOL SETTER
