MAZAK QT-450MY---80" with Steady------------Multi-Axis Turning
Have one to sell?
ConditionUsed
1 available
Maximum Swing 33.07”
Maximum Machining Diameter 22.84”
Bar Capacity 6.5”
Spindle Motor (30 min/Cont) 50/40 HP
Spindle Torque 1,748.7 FT/LBS
Spindle Speed 2,000 RPM
Spindle Nose A2-15
Spindle Bore 7.28”
Number of Tools 12
Tool Size Turning (Outside/Inside) 1.26” / 2”
Tool Size Milling (Drill/End Mill/Tap) CAT40 / CAT40 / 1-8 UNC
Indexing Time (one/full) 0.25/0.8 sec
Mill Spindle Speed 4,000 RPM
Tail Stock Center MT No. 5
Feed Axes:
X-axis (Travel/Rapid Reverse 13.39” / 1,181 IPM
Z-axis (Travel/Rapid Reverse) (80”) 83.625” / 1,181 IPM
Y-axis (Travel/Rapid Reverse) 8” / 591 IPM
Machine Dimensions 243” x 109” x 103.35”
Machine Weight (80”) 34,000 LBS
MAZATROL MATRIX NEXUS CONTROL
12.1" COLOR LCD
USB I/F (2-PORT)
LAN PORT
MT CONNECT PREPARATION
USER MACRO (COMMON VARIABLES: 600 PAIRS)
EIA/ISO INPUT FUNCTION
SEQUENCE NUMBER COMPARISON STOP FUNCTION
ABSOLUTE POSITIONING SYS (N/A WITH S/F)
TOOL EYE (AUTOMATIC)
HIGH-POWER COOLANT (520W) (59 PSI, 16 GPM)
Y-AXIS CONTROL
12 POSITION VDI TURRET
ROTARY-TOOL SPINDLE SPEED 4000RPM/9.4KGM
MILLING-SPINDLE SYNCHRONOUS TAPPING
C-AXIS 0.0001 DEGREE INCR.
50HP MAIN SPINDLE MOTOR AC (37KW, 50HP, 1760 FT*LBS)
SPINDLE BORE DIA. 185MM (7.28") / A2-15 NOSE / 2000 RPM
REAR CHUCK PREP A2-15 NOSE (SEE NOTE)
PROGRAMMABLE TAILSTOCK BUILT IN LIVE CENTER
MAZAK STANDARD COLOR (F WHITE / S BLACK)
ROLLER GUIDE
RELOCATION DEVICE
WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
18” KITAGAWA BB-218A15 w/ S2816 CYL. (6.5" CAP.)
OVERLOAD DETECTION SYSTEM
CHIP CONVEYOR SIDE EXIT 2000U (HINGE) 80"
PREPARATION 1000PSI SUPERFLOW ELECTRICAL
PREPARATION TURNING TOOL TO ACCEPT 1000 PSI
MAZAK SUPER FLOW V8A VARIABLE HIGH PRESSURE COOLANT
RE-THREADING
THREAD START POINT COMPENSATION
INCH/METRIC CONVERSION
MAZAK STEADY REST PREPARATION

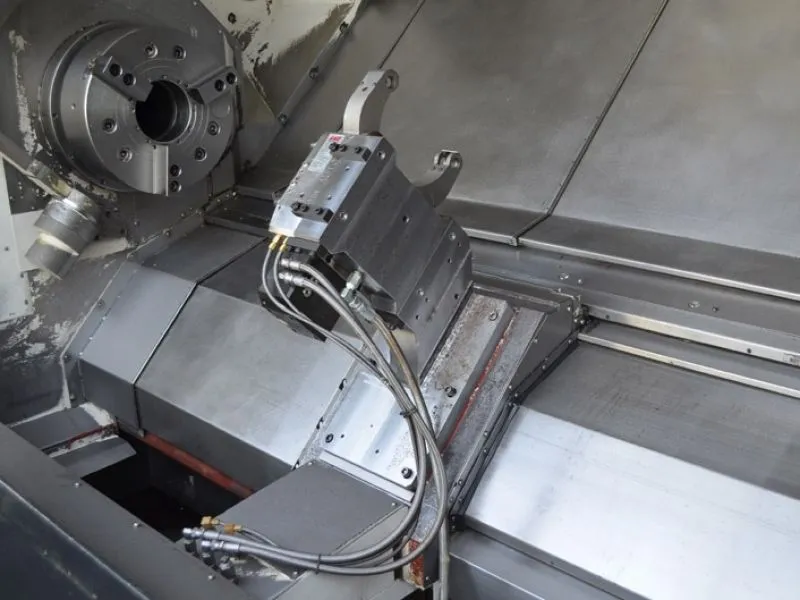

LNS/AUTOBLOK SLU-X-3.2 STEADY REST KIT INCLUDING LUBE UNIT, BRACKET
