MAZAK MULTIPLEX 650R, Fusion 640T CNC with Flex GL-500F Gantry Loader
Have one to sell?
ConditionUsed
1 available
Cutting Diameter---------------------18.1"
Max. Swing Diameter---------------24.40"
Spindle Nose--------------------------A2-8
Spindle Hole---------------------------3.46" (Main & Sub)
Spindle Speeds-----------------------35 - 2800 RPM
Spindle Motors------------------------50 HP (Main & Sub)
X-Axis Travel--------------------------14.4"
Z-Axis Travel--------------------------29.7"
Rapid Traverse X / Z----------------709 / 787 IPM
Turret Positions----------------------- 10 x 2 (VDI)
Distance Between Spindles-------76.77"
Approx. Weight: 48,000 lbs
* Mazatrol PC Fusion 640T 6-Axis CNC Control
* Absolute Position Detection
* Background Editing
* Dual Tool Presetters
* Flex GL-500F Gantry Loader with Pitch Feed, Robot Controller with Teach
* D3 Hand
* Synchronized Spindles
* Spindle Orientation
* Overload Protection
* Turret Air Blast L/R
* (2) 15.750" 3-Jaw Chucks ( One on Main & One on Right Spindle)
* Coolant System

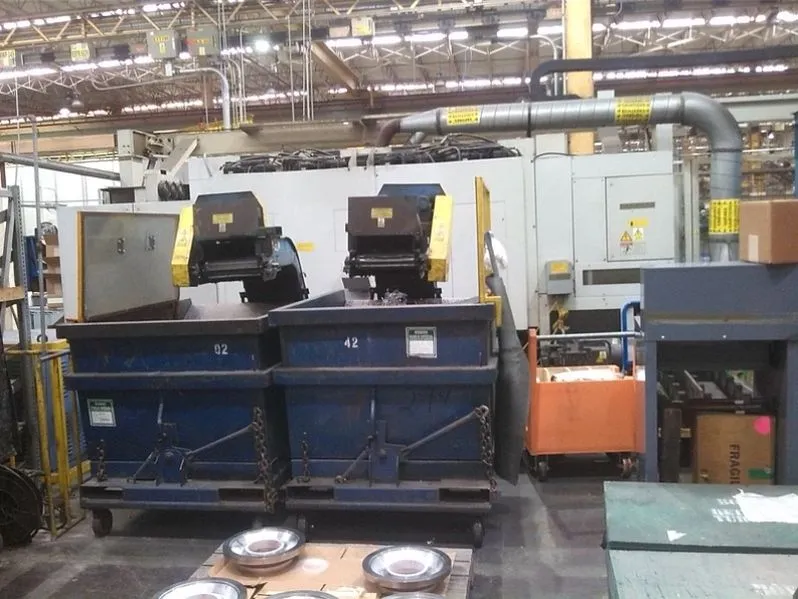

* Dual Chip Conveyors
