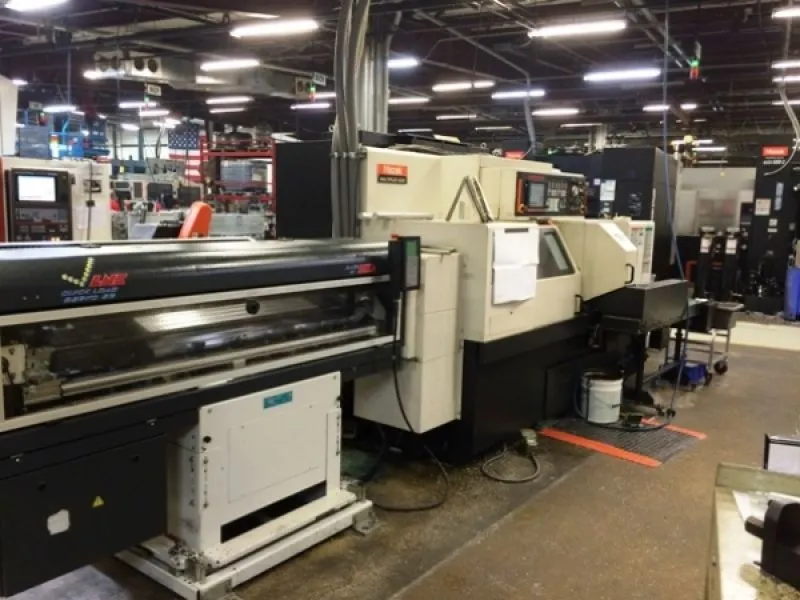

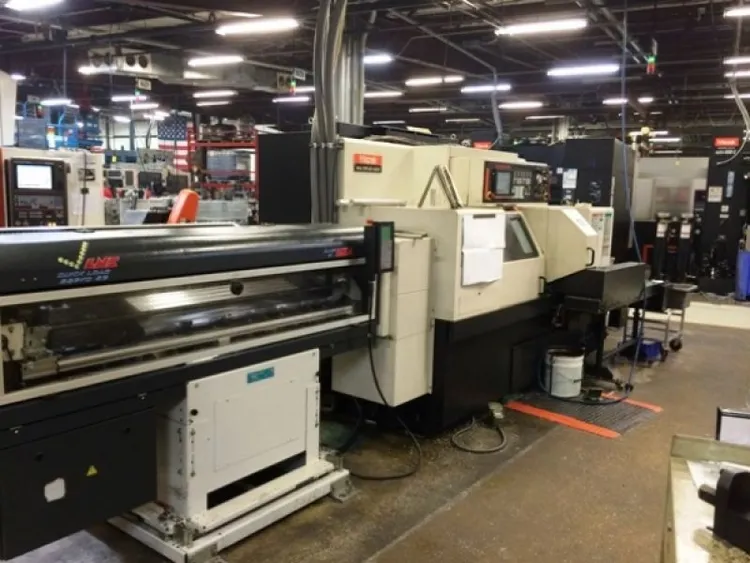

MAZAK MULTIPLEX 6250B (Multi-Axis) Turning Center w/ LNS QUICK-LOAD Servo 3 Barfeed 2006

Standard Chuck Diameter (L&R).............. 10"

Maximum Swing.............................. 12.5"

Standard Cutting Diameter.................. 10.24"

Maximum Bar Diameter.............. ......... 2.56"

Maximum Machining Length for Chuckwork...... 7.09"

Maximum Machining Length for Shaftwork..... 19.45"

MAIN SPINDLE (L&R)

Distance Between Spindle Faces:

Max.(Both Heads @ Home Position)...... 46.85"

Min. ................................. 10.15"

Spindle Nose.............................. A2-8

Spindle Bore.......................... 2.99"

Spindle Speed/Ranges...................... 35-4,000

Spindle Indexing (C-Axis)................. .001 deg./360,000

Positions

Spindle Horsepower......................... 30 HP

Spindle Torque............................. 258.2 ft.lbs.

TURRET (L&R)

Type of Turrets............................Dodecagonal/Drum

Tool Holder Shanks......................... Modified VDI

Turret Index Time (1 Step)................. 0.2 sec.

Total Number of Tools

(Rotary Avail./All Positions)..... 24 (12x2)

Tool Size (Turning & Facing)............... 1" x 1"

Tool Size (Boring Bar Max. Dia.)........... 1-1/2"

MILL SPINDLE (L&R)

Spindle Speed.............................. 4,500 RPM

Spindle Horsepower (10 Min)................ 5 HP (A.C.)

Maximum Drill.............................. 0.79"

Maximum End Mill........................... 0.79"

Maximum Tap................................ 1/2 - 13 UNC

AXIS

Travel X-Axis (L&R)........................ 9.06"

Travel Z-Axis (L).......................... 17.25"

(R).......................... 19.37"

Rapid Traverse: X-Axis.................... 1200 IPM

Z-Axis.................... 1300 IPM

C-Axis.................... 400 RPM

Machine Floor Space..... 71.9" x 146.9"

Machine Height.......... 82.3"

Total Weight (For Machine Only)........... 17,600 lbs.
