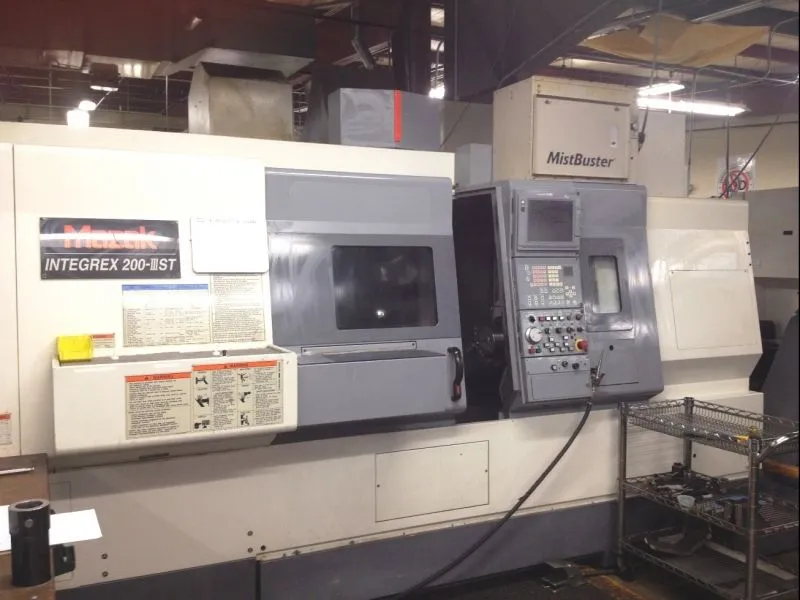

MAZAK MULTI-AXIS CNC TURNING CENTER MODEL: INTEGREX 200-IIIST 2003
Have one to sell?
ConditionUsed
1 available
Max. Swing.........................26 In
Max. Cutting Length................40 In
X-Axis Stroke......................22.83 In
Y-Axis Stroke..................... 3.15 In
Z-Axis Stroke......................41.1 In
B-Axis Travel......................225 Deg.
Spindle Speed......................5000 RPM
Spindle Nose.......................A2-6 In
Spindle Bore.......................2.99 In
X2 Lower Axis Stroke...............5.9 In
Z2 Lower Axis Stroke...............39.98 In.
2nd Headstock W-Axis...............41.34 In
Min. Spindle Indexing Increment....0.0001 Deg.
Second Spindle Speed...............5000 RPM
Rotary Tool Speed Range............12,000 RPM
Tool Storage Capacity..............40 Tools
ATC Tool Shank Type................KM 63
Lower Axis Turret Positions........9
Max. Tool Diameter.................3.54 In
With Adjacent Pockets Empty......4.72 In
Max Tool Length....................9.84 In
Max. Tool Weight...................22 Lbs.
Main Spindle Motor ( Cont/ 30 Min ).AC 20/ 30 HP
2nd Spindle Motor..................AC 20/ 25 HP
Rotary Tool Spindle Motor ( 20 % ED )..AC 20 HP
Mazatrol Fusion 640MT Pro Control
Performance CNC Optional Package
Two 8 Inch Chucks
1000 PSI Super Flow Coolant ( Chip Blaster )
Simultaneous 5 Axis Package ( Full B-Axis Contouring )
Automatic Parts Catcher
Prepped for Barfeed
Chip Conveyor
Full C-Axis First & 2nd Spindle ( 0.0001 Degrees )
Coolant Thru Milling Head Upper Turret
Auto Chuck Jaw Open/Close ( Both Spindles )
Chuck Open/ Close Confirmation ( Both Spindles )
Tool Eye
Prep For Multi and Flash Tool System
Y-Axis Control
