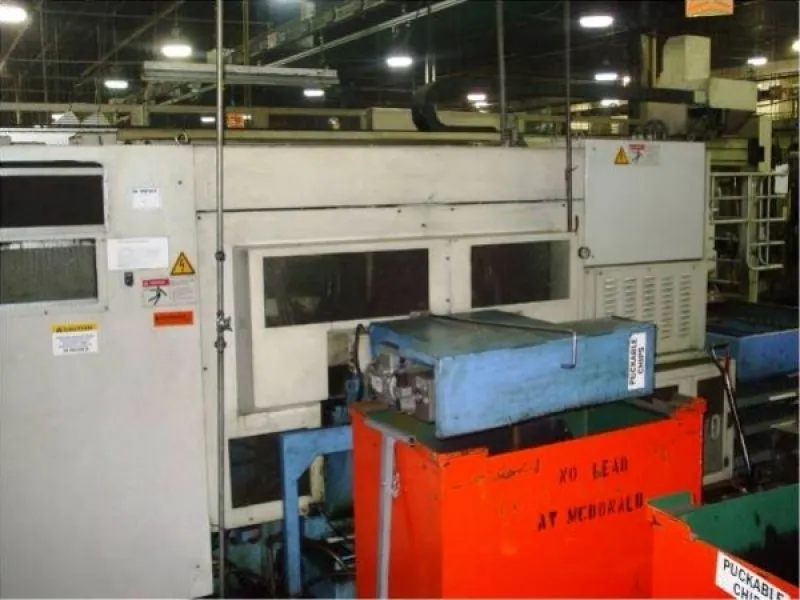

MAZAK MODEL MULTIPLEX 420 CNC TURNING CENTER 1997

Max Swing Diameter............................13.77 In
Standard Cutting Diameter.....................6.29 In
Max Cutting Length............................5.11 In
Distance Between Spindles at Home
Positions.....................................40.52 In
Spindle Nose..................................A2-5
Spindle Bore..................................2.05 In
Spindle Speed.................................35-5000 RPM
Type of Turrets...............................12 Pos/Drum
Total No. of Tools............................24(12 x 2)
Travel X-Axes
Turret No. 1..................................7.883 In
Turret No. 2..................................7.883 In
Travel Z-Axes
Head No. 1....................................14.336 In
Head No. 2....................................15.586 In
Rapid Traverse:
X - Axes......................................945 IPM
Z - Axes......................................945 IPM
Main Spindle Motor (Cont/30 Mins).............AC 10/ 15 HP
Machine Floor Space: (W x L)
Without Automation or Bar Feeder..............66.9 In x 128.3 In
Machine Height................................79.5 In
Total Weight..................................13230 Lbs.
