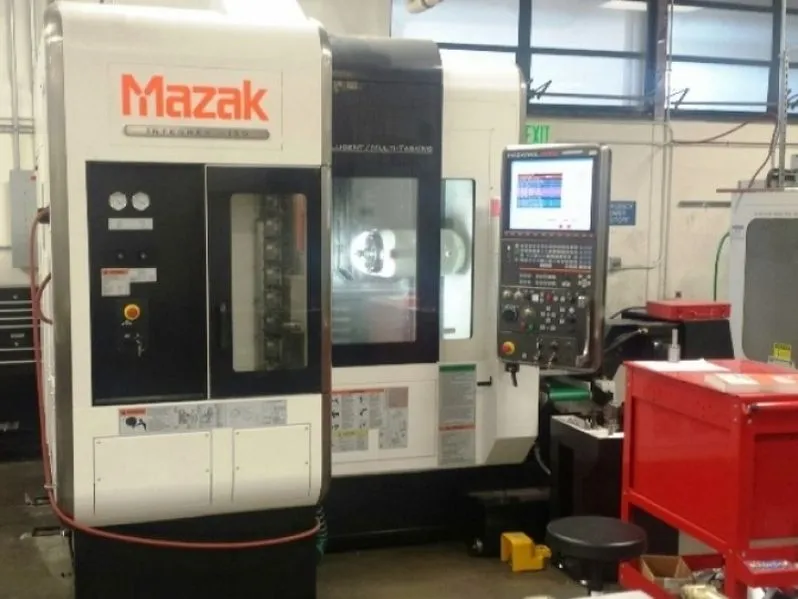

MAZAK INTEGREX i-150 Multi-Axis Turning
Have one to sell?
ConditionUsed
1 available
MAX. SWING 23.03"
MAX. CUTTING DIA.(CHUCKING) 23.03"
MAXIMUM CUTTING LENGTH 15.16"
SPINDLE BORE 2.99"
SPINDLE NOSE A2-6"
MAXIMUM BAR CAPACITY 2.56"
SPINDLE SPEEDS 5000 RPM
SPINDLE INDEX 0.0001 DEGREE
SPINDLE HORSEPOWER 15 HP AC
X - AXIS TRAVEL 14.57"
Y - AXIS TRAVEL 7.87"
Z - AXIS TRAVEL 17.13"
W - AXIS TRAVEL 11.81"
B - AXIS TRAVEL -10 - 190 DEGREES
TAILSTOCK N/C CONTROLED
TYPE OF TURRET 1 POSITION W/ATC
TOOL SHANK CAPTO
MAGAZINE CAPACITY 36 ATC
MAX. BORING BAR DIAMETER 1.25"
MAX. TOOL DIAMETER W/ALL POCKETS FULL 2.76"
MAX. TOOL DIAMETER W/ ADJACENT POCKETS EMPTY 3.54"
MAX. TOOL LENGTH 7.87"
MAX. TOOL WEIGHT 8.8 LBS.
ROTARY TOOL SPINDLE SPEEDS 12,000 RPM
ROTARY TOOL SPINDLE HORSEPOWER 10 HP AC
RAPID TRAVERSE RATE (Y/X/Z ) 1575/1575/1575 IPM
C - AXIS 550 RPM
B - AXIS 40 RPM
MACHINE WEIGHT 19,530 LBS
MATRIX CNC CONTROL
WINDOWS XP OPERATING SYSTEM
19" COLOR LCD
EIA/ISO
ADDITIONAL EIA/ISO
AUTOMATIC TOOL EYE
3-D COORDINATE CONVERSION
G00 SLOPE
SHAPE COMPENSATION FOR ROTAY AXES
CYLINDRICAL & POLAR COORDINATES
MILLING-SPINDLE SYNCHRONOUS TAPPING
EIA/ISO LATHE & MILL SPINDLE
INDEPENDENT ROTATION
INCH/METRIC CONVERSION
CARDBUS I/F - 2 SLOT
ROLLER GUIDE
ABSOLUTE POSITIONING - LINEAR AXES
X Y Z PITCH ERROR COMPENSATION
COMPLETE COOLANT SYSTEM
COOLANT THRU MILLING HEAD
71 PSI THRU COOLANT/ FLOOD COOLANT SIMUL-FLOWABLE
C-AXIS 0.0001 DEGREE INC
6" THRU-HOLE CHUCK B-206A0515 W/S1246 CYL
B-AXIS 0.0001 DEG/CONTOURING
SCALE FEEDBACK SYSTEM FOR B-AXIS
AUTOMATIC CHUCK JAWS OPEN/CLOSE
CHUCK OPE/ CLOSE CONFIRMATION
OPERATOR DOOR INTERLOCK/ LOCK SWITCH
HYDRAULIC PRESSURE INTERLOCK
COOLERS FOR BALL SCREW - X-AXIS
POWER TRANSFORMER FOR NORTH AMERICA
WORK UNLOADING UNIT
EIA/ISO SIMULTANEOUS 5 AXES
TOOL TIP POINT CONTROL/ SIMULTANEOUS 5 AXES
CHIP CONVEYOR - SIDE DISPOSAL
ALL AVAILABLE TOOLING AND MANUALS
