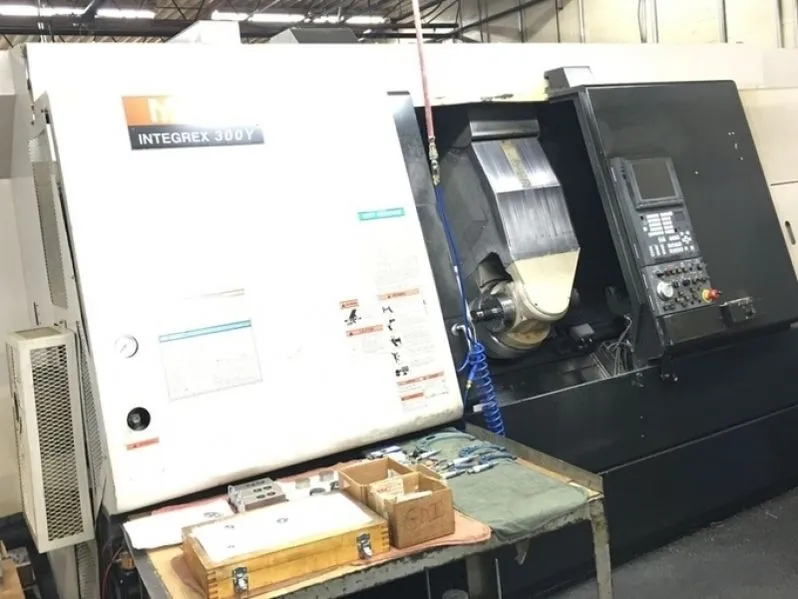

MAZAK INTEGREX 300Y CNC TURN-Mill CENTER

Max. Swing : Ø24.01’’

Swing Over Carriage : Ø15.35 ‘’ - 24.01’’

Max. Cutting Length : 59’’

X-Axis Stroke : 22.83 ‘’

Y-Axis Stroke : 4.13’’

Z-Axis Stroke : 60’’

Spindle Speed : 3500 RPM

B-Axis Travel : 225 Degrees

Spindle Nose : A2-8 In

Spindle Bore : Ø3.46 In

Min. Spindle Indexing Increment : 0.001 In

Rotary Tool Speed Range : 6000 RPM

Tool Storage Capacity : 40 Tools

Max. Tool Diameter : 3.54 In

With Adjacent Pockets Empty : 4.72 In

Max Tool Length : 11.81 In

Max. Tool Weight : 22 Lbs.

ATC Tool Shank : KM

Rapid Traverse Rate

X-Axis : 1181 IPM

Y-Axis : 590 IPM

Z-Axis : 1181 IPM

C-Axis : 300 RPM

Main Spindle Motor : AC 30/ 35 HP

Rotary Tool Motor : AC 20 HP

Machine Height : 106.3 In

Floor Space Requirements : 143.1 In x 88.6 In

Machine Weight : 18,942 Lbs.
