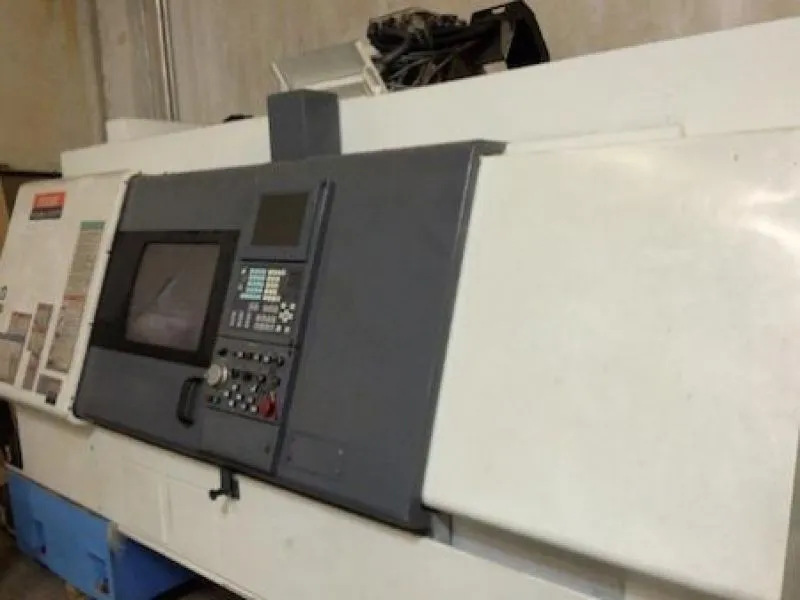

Mazak Integrex 200SY Multi-Axis CNC Lathe 1999

Between Chucks Distance 41.8”

Maximum Swing 21.26”

Maximum Swing over the Carriage (Y Axis Position)15.3” – 21.2”

Maximum Machining Diameter (Chucking) 26”

Maximum Machining Length 40”

X Axis Stroke: 20.87”

Z Axis Stroke 41.9”

Y Axis Stroke 5.5”, +/- 2.75”

W Axis Stroke (Second Spindle Travel) 41”

B Axis Stroke (.0001 Degree Increment) 225 Degrees

B Axis Travel -30 to 195 Degrees

C Axis Control – Main Spindle Only True C Axis

Main Spindle Chuck Size 8”

Bar Capacity 2”

Spindle Bore 2.44”

Main Spindle Speed 5,000 RPM

Main Spindle Taper KM63

Main Spindle Index – True C Axis, Programmable 0.001 Degree

Main Spindle Motor – AC (Cont./30 Min) 30 HP

Second Spindle Chuck Size 6” Diameter

Second Spindle Speed 35 – 5,000 RPM

Second Spindle Motor 10 HP

Second Spindle Power (Torque) 42 Ft. Lbs.

Second Spindle Index (True C Axis) 5 Degree

Type of Turret 1 Position

Turret Positioning (“B” Axis) .001 Degree

Rotary Tool Spindle Motor 10 HP

Rotary Tool Spindle Speed 20 – 10,000 RPM

Tool Magazine Capacity 40 Tools

Total Machine Weight 21,540 Pounds
