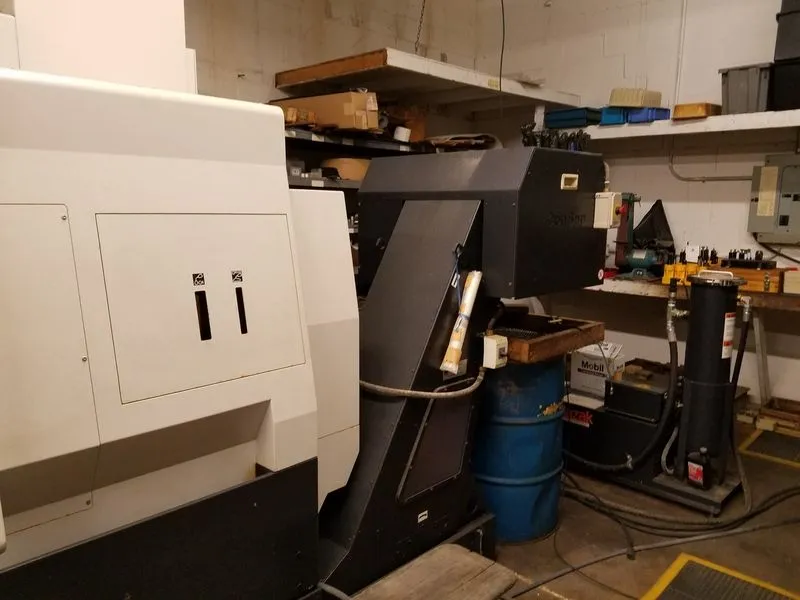

MAZAK Integrex 200IV-ST x 60"
Have one to sell?
ConditionUsed
1 available
Bar Capacity: 2.5"
Chuck Size: 8" (Main/Sub)"
Spindle Speed: 5000 (Main/Sub) RPM
Spindle Motor: 30 Main HP 25 Milling HP
X Axis Travel: 22.83" Upper / 5.9" Lower"
Z Axis Travel: 60"
Turret Tools: 9 Lower / 40 ATC Station
Max Turning Dia: 26" Upper / 10.24" Lower"
Max Turning Length: 58.85"
Max Swing: 26"
Dimensions: 201"x96"x102"
Weight: 25960 LBS
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
B Axis Pendulum Head
Y Axis and Full C Axis on Both Spindles
Live Milling on Upper Turrett
High Pressure Coolant
Wired for Renishaw Probe
Main and Sub Spindle Synchronization
