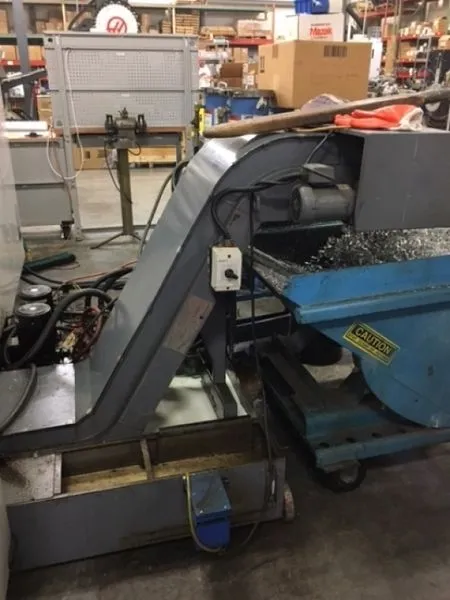

MAZAK INTEGREX 200-3-ST Multi-axis Turning Center

Maximum Swing / Swing Over Carriage

26" / 26"

Maximum Turning Diameter / Length / Spindle Distance

26.5" / 40" / 41.14"

Main Spindle:

Speeds

50 -5,000 RPM

Spindle Bore / Bar Cap / Spindle Nose

2.99" / 2.5" / A2-6

Motor (30 min. / cont.)

25 / 20 HP

Sub-Spindle:

Speeds

50 -5,000 RPM

Spindle Bore / Bar Cap / Spindle Nose / Indexing

2.99" / 2.5" / A2-6

Motor (30 min. / cont.)

25 / 20 HP

Turrets:

Number of Positions (ATC) / Lower Turret

40 Tool ATC / 9 Sta.

Travels:

X-Axis Travel / X2-Lower Turret

22.83" / 5.91"

Z-Axis Travel / Z2-Lower Turret

41" / 38.98"

Y-Axis Travel / Tilt Head

3.15" +/- / 225°

Sub-Spindle Stroke / Indexing Main & Sub Spindle

40" / 360,000°

Rotary Tools:

Rotary Tool Speed Upper Turret / Lower Turret

12,000 / 6,000 RPM

Rotary Tool Motor

20 HP

Rapids:

Rapid Traverse (X & Z / B)

1,496 / 555 IPM

Rapid Traverse (Y / Sub Spindle)

1,024 / 1,181 IPM

Dimensions:

Floor Space (L x W x H)

201" x 96" x 103"

Weight (approx)

26,000 Lbs
