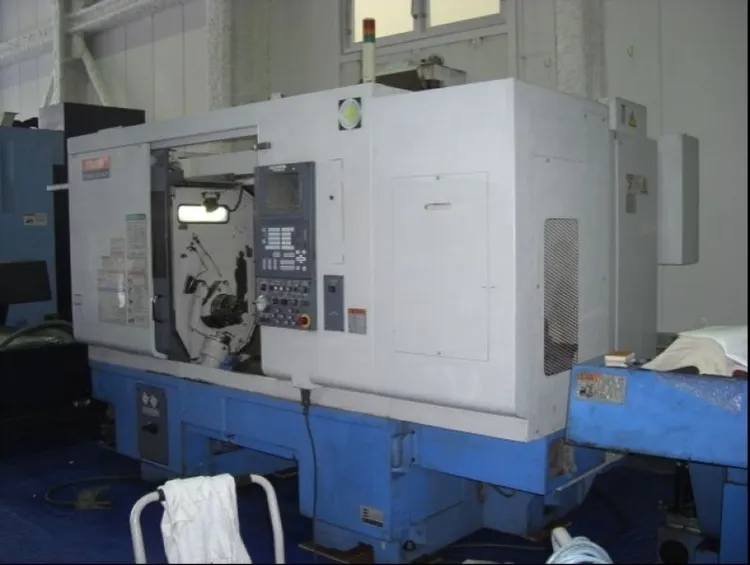

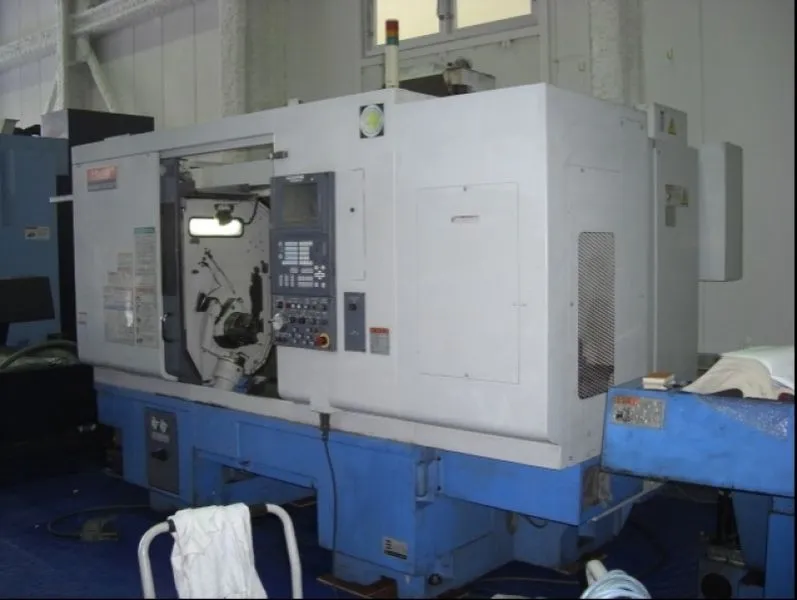

Mazak Integrex 100-IISY MULTI-AXIS Turning / Milling Center 2002

Maximum Swing.......................... 18.5"

Maximum Swing Over Carriage............ 11.42"

Maximum Cutting Diameter: Chucking..... 18.5"

Maximum Cutting Length................. 29.72"

MAIN SPINDLE SPECIFICATIONS (L):

Spindle Nose........................... A2-5

Spindle Bore...... .................... 2.4"

Spindle Index (Programmable)........... 0.001 Degree/360,000 Positions

Spindle Horsepower .................... 10 H.P. (A.C.)

Spindle Torque......................... 119 ft./lbs.

SECOND SPINDLE SPECIFICATIONS (R):

Spindle Nose........................... A2-5

Spindle Bore........................... 2.04"

Maximum Bar Work....................... 1.69" Dia.x 23.5"deep from chuck face/1.69" thru opt

Spindle Speed……………..................... 6,000 RPM

Spindle Index (Programmable)........... 0.001 Degree

Spindle Horsepower .................... 10 H.P. (A.C.)

Spindle Torque......................... 58 ft./lbs.

TURRET AND TOOLING SPECIFICATIONS:

Type of Turret......................... 1 Position, w/ATC

Tool Shank Height...................... 3/4"

Tool Size (Boring Bar Max. Dia.)....... 1.25"

Magazine Capacity...................... 40 ATC

Tool Selection Method.................. Random

Tool to Tool ATC Time.................. 1.1 Sec.

Max. Tool Dia. w/All Pockets Full...... 2.76"

Max. Tool Dia. w/Adj. Pockets Empty.... 3.54"

Max. Tool Length (From Gage-Line)...... 7.87"

Maximum Tool Weight.................... 8.8 lbs.

Rotary Tool Spindle Speed.............. 10,000 RPM

Rotary Tool Spindle HP ................ 7.5 H.P. (A.C.)

Rotary Tool Torque..................... 36 ft./lbs.

AXIS TRAVELS:

B-Axis..................225 deg./0.001 deg. Increments

Y-Axis................................. +/- 2.36"

X-Axis................................. 14.17"

Z-Axis................................. 30.87"

Second Headstock Z2-Axis............... 29.75"

AXIS RAPID RATES:

Y-Axis................................. 1024 IPM

X-Axis................................. 1181 IPM

Z-Axis................................. 1299 IPM

Second Headstock Z2-Axis............... 1181 IPM

C-Axis................................. 400 RPM

B-Axis................................. 74 RPM

MACHINE:

Floor Space (WxL) ..................... 81.9" x 122"

Machine Height......................... 91.3"

Total Power Required (Machine Only).... 19.1 KVA

Machine Weight......................... 10,803 lbs.
