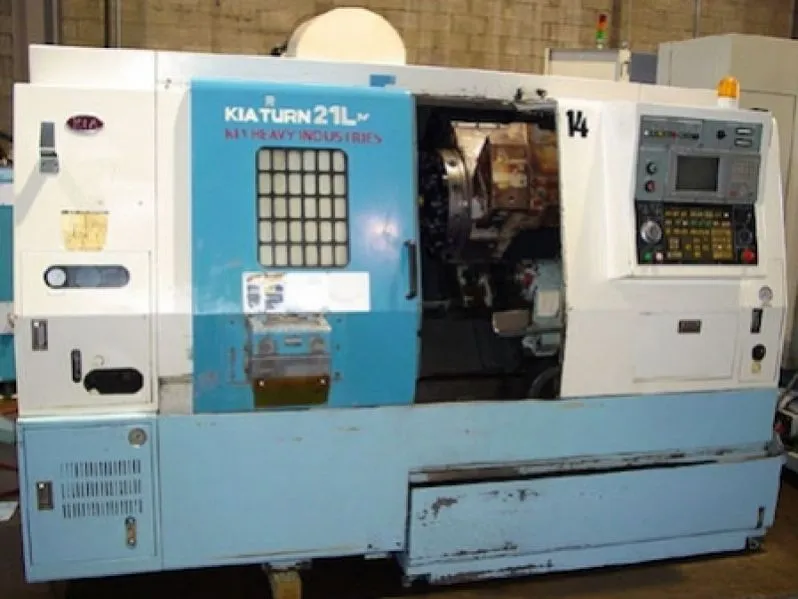

KIA SUPER KIA TURN 21LMS CNC TURNING CENTER 2000

Machine Details
w/ Live Tooling & Sub-Spindle

S/N SKT21LMSB013

EQUIPPED WITH:

Mitsubishi M52L CNC Control w/CRT, Live Tooling, RS232 Port, ATS

Workholding 726AS-C18 Collet Chuck, 12 Position Turret, Partial Parts

Catcher, Touch Setter, Chip Conveyor and Coolant System.

CATALOGUE SPECIFICATIONS:

Max Swing Over Bed...................................... 21.7"

Maximum Swing Over Cross Slide.......................... 13.8"

Maximum Turning Diameter Sub-Spindle.................... 5.3"

Maximum Turning Length.................................. 20.87"

Cross Travel (X-Axis)................................... 10.23"

Longitudinal Travel (Z-Axis)............................ 20.47"

Number of Turrets....................................... 1

Tool Positions.......................................... 12 Total

Spindle Bore............................................ 3.15"

Bar Capacity............................................ 2.5"

Spindle Nose............................................ A2-8

Spindle Speed Range (1 RPM Increments).................. 100-4000 RPM

Spindle Horsepower...................................... 20 HP

Electrics............................................... 220/3/60

Approximate Machine Dimensions (w/o Chip Conveyor)...... 114" x 72"

Approximate Machine Height.............................. 77"

Approximate Machine Weight.............................. 10,000 LBS
