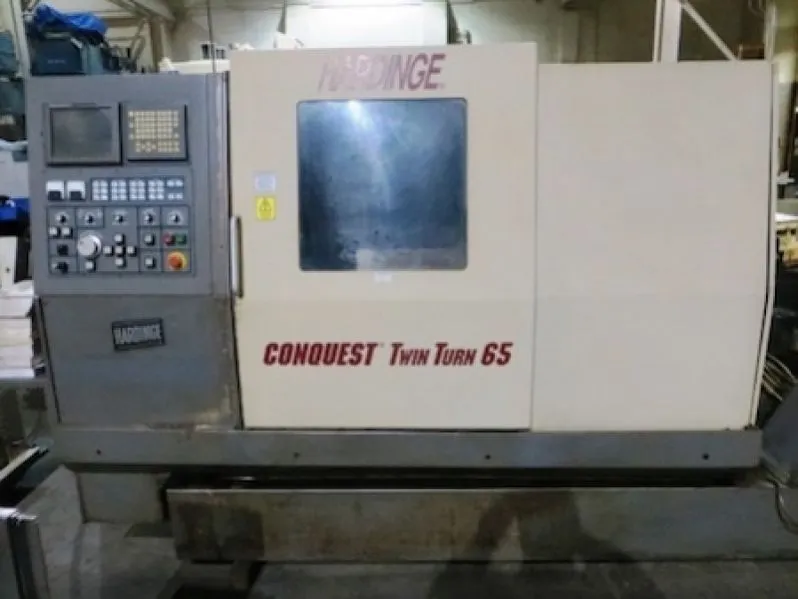

Hardinge Conquest Twin-Turn 65 (8-Axis) 2000
Have one to sell?
ConditionUsed
1 available
NEW IN: 2000
Max Swing Over Bed: 19.45"
Max Turning Length With Collet: 17.72"
Main Spindle Speed Range: 40 - 4,000 RPM
Main Spindle Configuration: ANSI A2-6"
Main Spindle Hole Diameter: 3.25"
Main Spindle Drive Motor: 25 HP
Sub-Spindle Drive Motor: 15 HP
Sub-Spindle Travel: 20.47"
Sub-Spindle Nose: ANSI A2-6"
X-Axis Travel: 5.51"
Y-Axis Travel: +/- 1.377"
Z-Axis Travel: 17.71"
Live Tool Spindle Speeds: 80 - 8,000 RPM
Live Tool Drive Motor: 5 HP
Rapid Traverse Rate: X-Axis - 590 IPM, Y-Axis - 236 IPM, Z-Axis - 1181 IPM
Sub-Spindle: 1181 IPM
Approx Weight: 22,000 Lbs
Fanuc 18iT 8-Axis CNC Control
Upper Turret Has Y-Axis Movement
Sub-Spindle
2 x 10-Position Turrets w/ Live Milling All Stations
C-Axis .001 Degree Indexing Both Spindles
Part Catcher
Chip Conveyor
Collet Chuck
Bar Feed Interface
Control Options:
Polar Coordinate Interpolation
Cylindrical Interpolation
Polygon Cutting
Helical Interpolation
Thread Cutting Retract
Variable Lead Thread Cutting
Rigid Tapping
Balance Cutting
Tool Post Interference Check
High Speed Skip Function
Multi-Skip Function
Cs-Axis Contour Control
Constant Surface Speed Control
Multi Spindle Control
Direct Drawing Dimension
Includes All Tooling And Spare Parts As Pictured - 5 Live Tool Holders, Many Standard Tool Holders, Etc.
