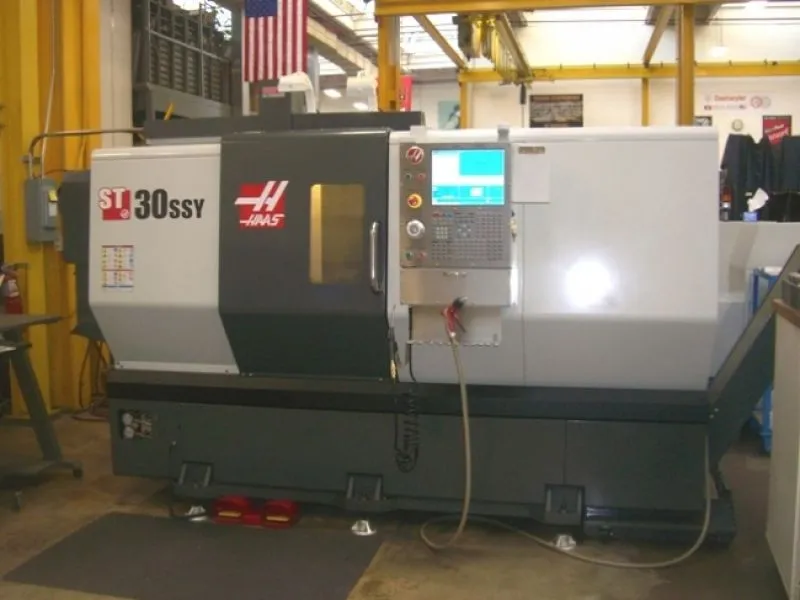

HAAS ST-30SSY Multi-Axis Turning Center
Have one to sell?
ConditionUsed
1 available
Chuck Size
10"
Max Diameter Bar Capacity
3"
Max Swing Over Bed / Carriage
31.75" / 20.75"
Max Turning Diameter
16"
Max Machining Length
23"
Spindle Speed
4800 RPM
Spindle Bore
3.5"
Spindle Nose
A2-6
Spindle Motor
30 HP
Spindle Torque
275 ft. lbs.
Tools
24
Milling Speed
6000 RPM
Rapid Traverse Rates (X & Y / Z)
472 / 1200 IPM
X-Axis Travel
12.5"
Z-Axis Travel
23"
C-Axis Index
.001 Degrees
Y-Axis Travel
+ / - 2"
Machine Dimensions (L x W x H)
171" x 99" x 98"
Machine Weight
14,300 lbs.
HAAS CNC CONTROL
15" Color LCD
USB Port
1 MB Memory
C & Y-Axis Milling Capability
10" Samchully MH-210 Hydraulic 3-Jaw Chuck
24 Station Hybrid VDI/BOT Turret
Automatic Tool Presetter
Fully Programmable Hydraulic Tailstock
Intuitive Programming System
Rigid Tapping
Spindle Orientation
Hennig Chip Conveyor (Belt Type Side Exit)
4800 RPM Spindle Speed Option
30 HP Vector Drive Motor
1200 IPM Rapid Traverse Rates (Z-Axis)
High Intensity Lighting
Green Indicator Light
Servo Auto Door
Internal High Voltage Isolated Transformer for 380 - 480 V
(2) Boring Bar Holders (1.25" ID)
(2) Boring Bar Holders (1" ID)
(1) Turning Holder (0.75")
(1) Facing Holder
(3) Turning Holders
Mfg Date October 2014
2469 Servo Time
623 Motion Time
437 Spindle Time
