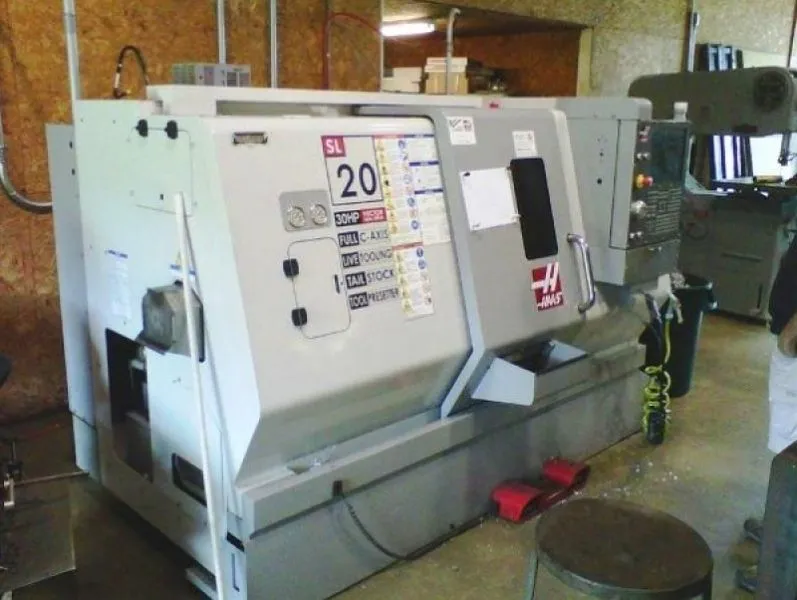

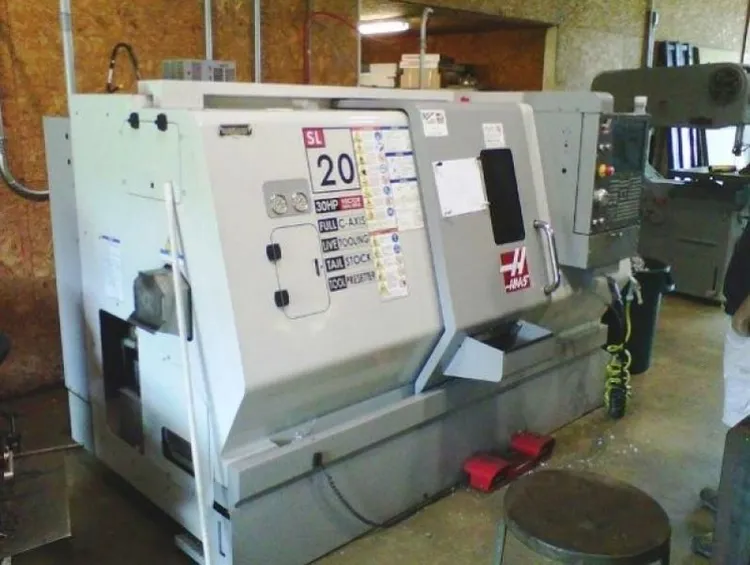

HAAS SL-20-T (3-axis CNC Turning center) 2009
Have one to sell?
ConditionUsed
1 available
Chuck Size:
8.3" Hyd Chuck/Collet
Maximum Swing Over Bed/Cross Slide:
23" / 9.5"
Maximum Turning Diam. / Length:
10.3"/20"
Center Distance:
24"
Maximum Bar Capacity:
2.0"
X-Axis Travel:
8.45"
Z-Axis Travel:
20"
Spindle Nose / Spindle Bore:
A2-6" / 3.0"
Spindle Speed:
5,000 RPM
Spindle Motor / Torque:
30 HP / 120 ft/lbs.
Live Tool Motor / Live Tool Speeds:
5 HP / 3,000 RPM
Turret Type:
10 Position VDI Turret
Rapid Traverse Rates:
710 IPM
Tailstock Taper / Travel:
MT #4 / 20"
Machine Dimensions:
126.5" x 62" x 72"
Machine Weight:
9,000 lbs.
Live Milling Capability
Full C Axis Spindle Rotation
8.3" 3 Jaw Hydraulic Chuck
5C Collet Chuck
Fully Programmable Tailstock
Tool Presetter
Parts Catcher
Chip Auger
10 Station VDI Style Turret
Auto Jet Air Blast by M Code
Rigid Tapping
Vector Drive Spindle
High Torque Live Tooling
(2) Live Holders Included 1 axial, 1 radial
RS 232 Port Interface
High Speed Brushless Servos
All Available Manuals
All Available Static Tooling
5725 Power On Hours
1953 Motion Hours
ONLY 1499 SPINDLE RUN HOURS
