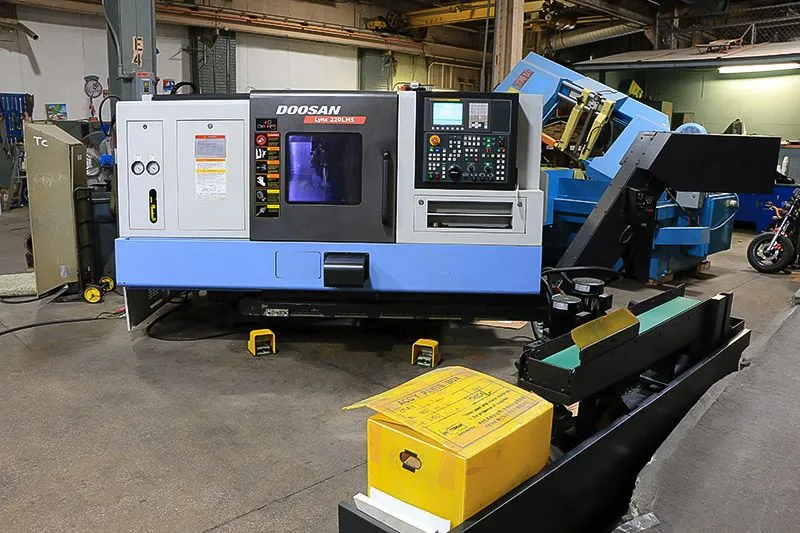

DOOSAN LYNX 220LMSA MULTI AXIS CNC TURNING CENTER

SWING OVER BED ................. 23.6"

SWING OVER SADDLE .............. 15.7"

MAX. TURNING DIAMETER .......... 11.8"

MAX. TURNING LENGTH ............ 20.1"

CHUCK SIZE ..................... 6"

BAR WORKING DIAMETER ........... 2"

X-AXIS TRAVEL .................. 8.1"

Z-AXIS TRAVEL .................. 21.7

B-AXIS TRAVEL .................. 21.7"

RAPID TRAVERSE RATE X/Y/B ...... 1181/1417/1181 IPM

MAX. SPINDLE SPEED, MAIN ....... 6000 RPM

MAIN SPINDLE MOTOR ............. 20/15 HP

SPINDLE NOSE ................... A2-5

MIN. SPINDLE INDEXING ANGLE .... 0.001 DEG.

MAX. SPINDLE SPEED, SUB ........ 6000 RPM

SUB SPINDLE MOTOR .............. 7.5/5 HP

SPINDLE NOSE ................... FLAT

SPINDLE THROUGH HOLE DIA. ...... 1.7"

MIN. SPINDLE INDEXING ANGLE .... 0.001

OF TOOL STATIONS ........... 12 (24 INDEX)
OD TOOL SIZE ................... 0.8"

MAX. BORING BAR SIZE ........... 1.3"

MAX. ROTARY TOOL SPEED ......... 6000 RPM

ROTARY TOOL MOTOR .............. 5 HP

APPROX. MACHINE WEIGHT ......... 9250 LBS
