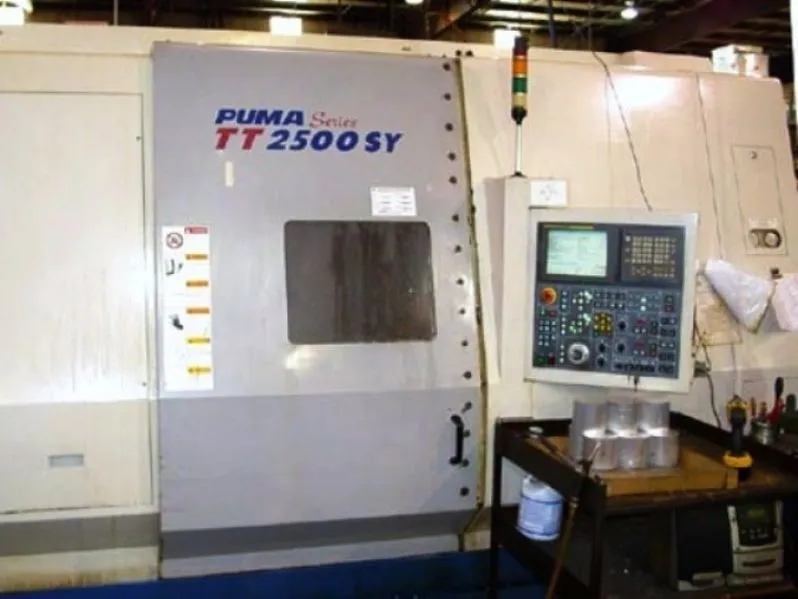

DAEWOO TT2500SY 2005

Max Swing Over Bed..................................... 31.5"
Maximum Turning Diameter (Upper Turret)................ 15.35"
Maximum Turning Diameter (Lower Turret)................ 11.81"
Maximum Turning Length................................. 29.13"
Standard Chuck Size.................................... 10"
Cross Travel Turret 1 (X1-Axis)........................ 10.04"
Longitudinal Travel Turret 1 (Z1-Axis)................. 31.5"
Y-Axis Travel.......................................... 4.72"
Cross Travel Turret 2 (X2-Axis)........................ 7.48"
Longitudinal Travel Headstock (Z2-Axis)................ 35.43"
C-Axis (Both Spindles)................................. .001 Degrees
Rapid Traverse Rate (X1, X2 Axes)...................... 787 IPM
Rapid Traverse Rate (Z1, Z2 Axes)...................... 945 IPM
Rapid Traverse Rate (Y-Axis)........................... 295 IPM
Number of Turrets...................................... 2
Tool Positions......................................... 12 each turret
Spindle Bore........................................... 3.54"
Maximum Bar Capacity................................... 3"
Spindle Nose........................................... A2-8
Spindle Speed Range.................................... 30-3500 RPM
Spindle Horsepower..................................... 25 HP
Rotating Tool Maximum Speed (Both Turrets)............. 4000 RPM
Rotating Tool Horsepower (Both Turrets)................ 7.5 HP
Approximate Machine Dimensions......................... 165" x 87"
Approximate Machine Height............................. 105"
Approximate Machine Weight............................. 26,000 LBS
