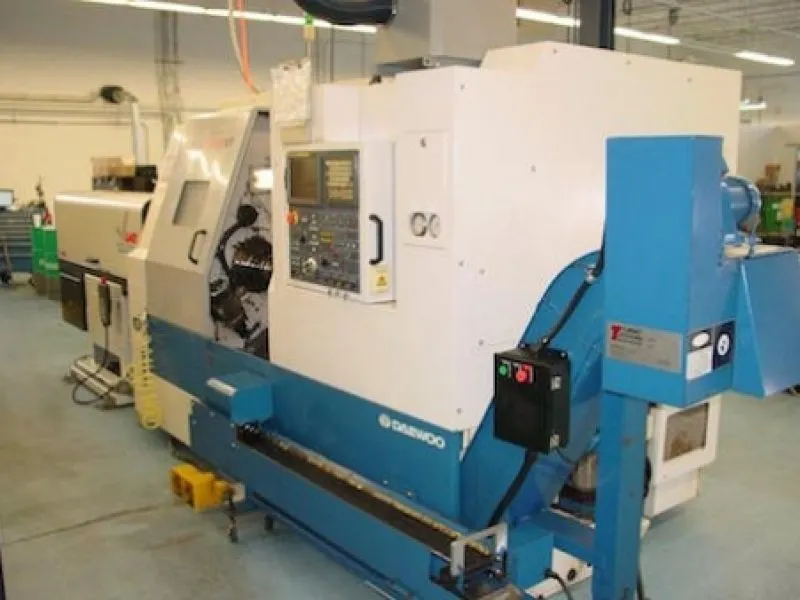

DAEWOO PUMA 2000SY CNC TURNING CENTER 2003

SWING OVER BED ......................... 23.6"

SWING OVER SADDLE ...................... 21.7"

RECOM. TURNING DIA. .................... 8.3"

MAX. TURNING DIA. ...................... 13"

MAX. TURNING LENGTH .................... 20"

BAR WORK DIAMETER ...................... 2.6"

X-AXIS TRAVEL .......................... 9.8"

Z-AXIS TRAVEL .......................... 22.8"

Y-AXIS TRAVEL .......................... 4(+/-2)

B-AXIS TRAVEL .......................... 22.8"

SPINDLE SPEED .......................... 4500 RPM

SPINDLE NOSE ........................... A2-6

SPINDLE BORE DIA. ...................... 3"

MIN. SPINDLE INDEX ANGLE (C-AXIS) ...... 0.001 deg.

NO. OF TOOL STATIONS ................... 12

TURRET INDEX TIME ...................... 0.1 sec.

ROTARY TOOL SPINDLE SPEED .............. 6000 RPM

SUBSPINDLE SPEED ....................... 6000 RPM

SUBSPINDLE SPINDLE BORE ................ 1.8"

MIN. SPINDLE INDEX ANGLE (C-AXIS) SUB... 0.001 deg.

RAPID TRAVERSE X/Z AXES ................ 788/945 IPM

RAPID TRAVERSE Y-AXIS .................. 296 IPM

RAPID TRAVERSE B-AXIS .................. 788 IPM

MAIN SPINDLE MOTOR ..................... 20.1 HP

SUBSPINDLE MOTOR ....................... 10/7.4 HP

ROTARY TOOL MOTOR ...................... 5 HP

APPROX DIMENSIONS ...................... 123"x67"x81"

APPROX. WEIGHT ......................... 10,695 LBS.
