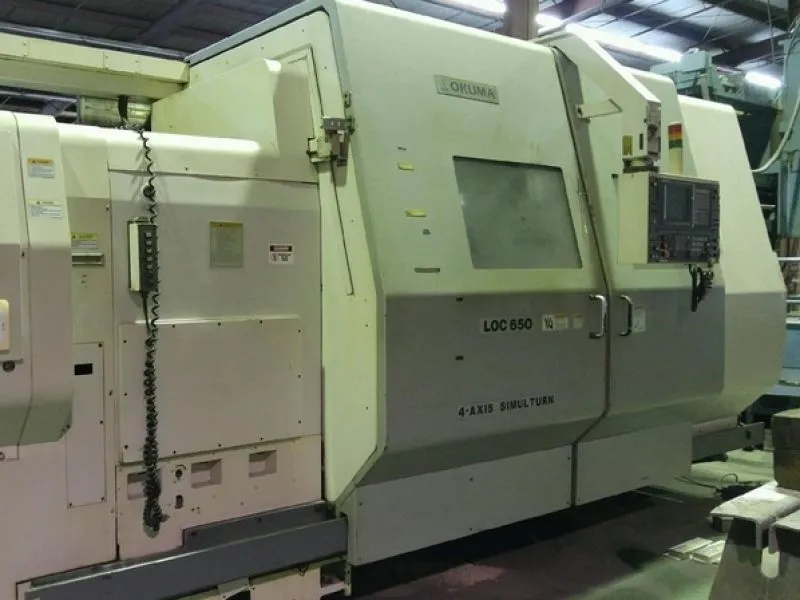

OKUMA LOC 650 GBB2SC 1750

Machining Diameter:…………………19.69″

Max Turning Dia (Upper / Lower Turret):… 22.5″ / 20.08″

X Axis Travel Upper Turret:…….12.99″ / -5.51″

X-2 Axis Travel Lower Turret:………..10.04″ / -0.59″

Z-2 Axis Travel:…………80.31″

Power (Spindle):………..30 Min: 50 HP Cont: 60 HP

Speeds (Spindle):………….5-500 RPM

Nose (Spindle):…………….A2-20

Bore (Spindle):……………… 14.76″

Chuck Type:……….Air

Chuck Diameter (Spindle 2):……………32.00″

Number of Turrets:…………………….2

Turret 1Type:…………….Drum

Turret Positions:……………………..12

Turret 2 Type>:………….Drum

Turret 2 Positions:…………..8

Quill Taper:………MT6

Quill Stroke:……………. 7.87″

Quill Diameter:……………………7.09″

Floor Space:……………….393.00″ x 118.00″

Machine Height:………111.9″

Weight:…..52800 lb
