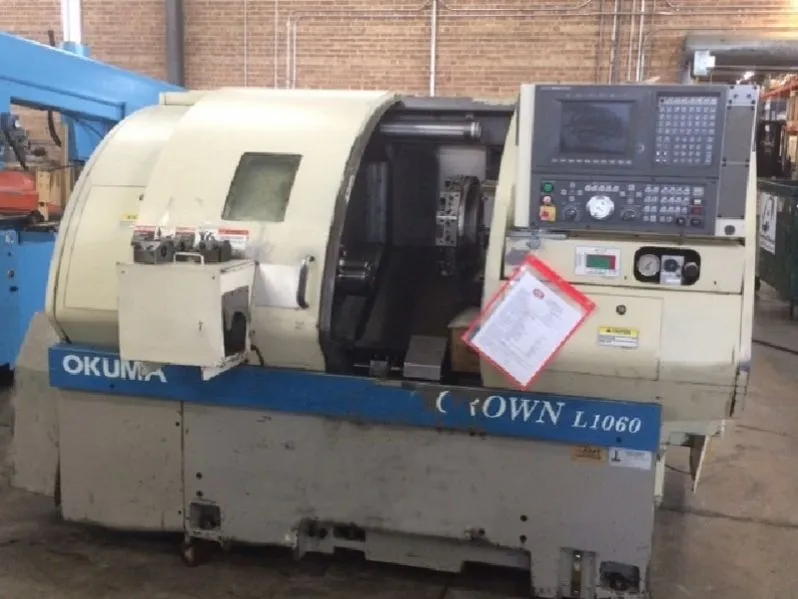

OKUMA CROWN L1060 CNC Lathe w/ Hydraulic Tailstock
Have one to sell?
ConditionUsed
1 available
Nominal Size 10" x 20"
Swing over Saddle 15.75
Max Turning Diameter 10.63"
Max Work Length 20.47"
Spindle Diameter/ Bore Diameter 4.72"/ 3.15"
Spindle Nose A2-8
Internal Taper of Spindle 1/10
Range of Spindle Speed 65-3,500 RPM
Cross-Slide Travel (X-Axis) 7.28"
Longitudinal Travel (Z-Axis) 20.47"
Cutting Feed Rate .0001 to 40.000
Rapid Traverse Speed Z/X 787/590 IPM
Hyd. Tailstock Center Taper MT No. 5
Main Motor 20 HP
Floor Space 104" X 69"
Net Weight 10,000 Lbs
OSP-U10L Control
Hydraulic Tailstock,
Big Bore,
Parts Catcher,
Collet Chuck,
Tool holders,
Chip Conveyor.
