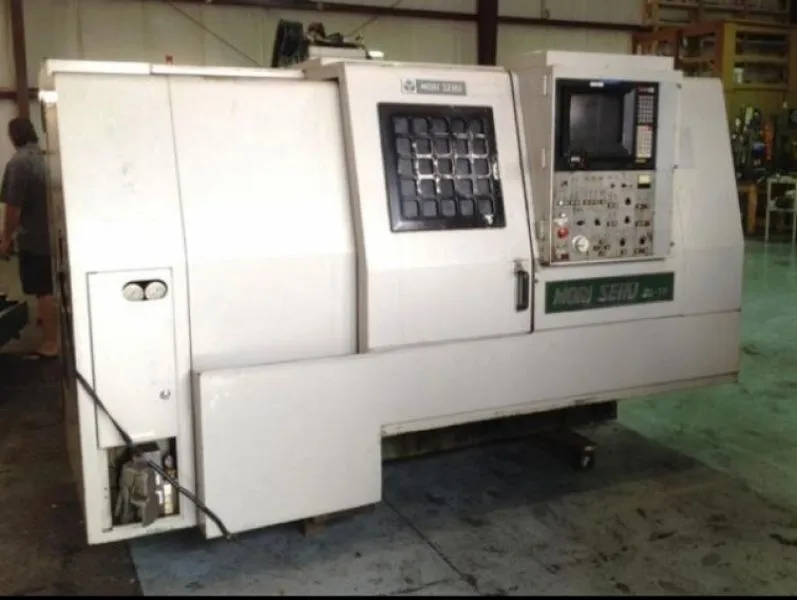

MORI SEIKI ZL-15 1988

Chuck Size:

None

Swing Over Bed / Carriage:

18.9" / 14.57"

Maximum Machining Diameter:

9.1"

Maximum Turning Length:

20.67"

Maximum Center Distance:

23.4"

X Axis Travel (Upper/Lower):

5.3" / 3.94"

Z Axis Travel (Upper/Lower):

22.05" / 22.05"

Spindle Nose / Spindle Bore:

A2-5" / 2.04"

Spindle Speed Range:

50 to 5,000 RPM

Spindle Motor 30 Min. / Cont.:

15 / 10 HP

Turret Type / No. of Tools:

2 Turrets / 12 + 8 Pos.

Rapid Traverse Rates X / Z:

472 IPM / 594 IPM

Tailstock Body / Quill Travel:

22.05" / 3.15

Tailstock Quill Center / Quill Diameter:

MT #4 / 2.95"

Machine Dimensions LxWxH:

151"x67"x74"

Machine Weight:

12,100 lbs
