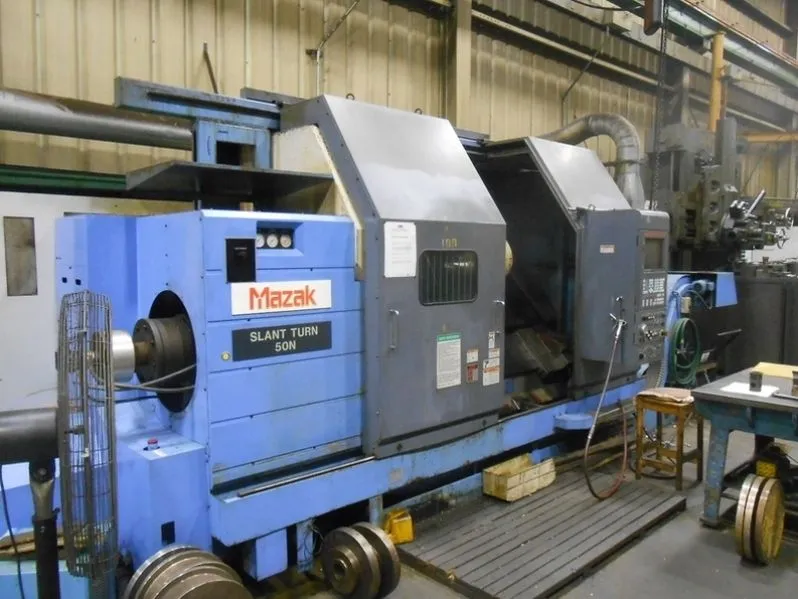

MAZAK Slant Turn-50NX-1500c Chucker
Have one to sell?
ConditionUsed
1 available
Maximum Swing..........................31.7 In
Swing Over Carriage....................22 In
Max. Cutting Diameter.................26 In
X-Axis Travel...............................22.64 In
Z-Axis Travel...............................62 In
Spindle Speed Ranges.................4 - 1700 RPM
Spindle Nose...............................A1-11 In
Spindle Bore................................4 In
Type of Turret..............................Decagonal Drum
Number of Turret Positions…......12
Rapid Traverse Rate
X-Axis................................475 IPM
Z-Axis................................640 IPM
Main Motor ( 30 Min ).................AC 50 HP
Machine Weight.........................23,800 Lbs.
Mazatrol T-PLUS Full Color Control
24 Inch Hydraulic Chuck
Chip Conveyor
Automatic Tool Eye
