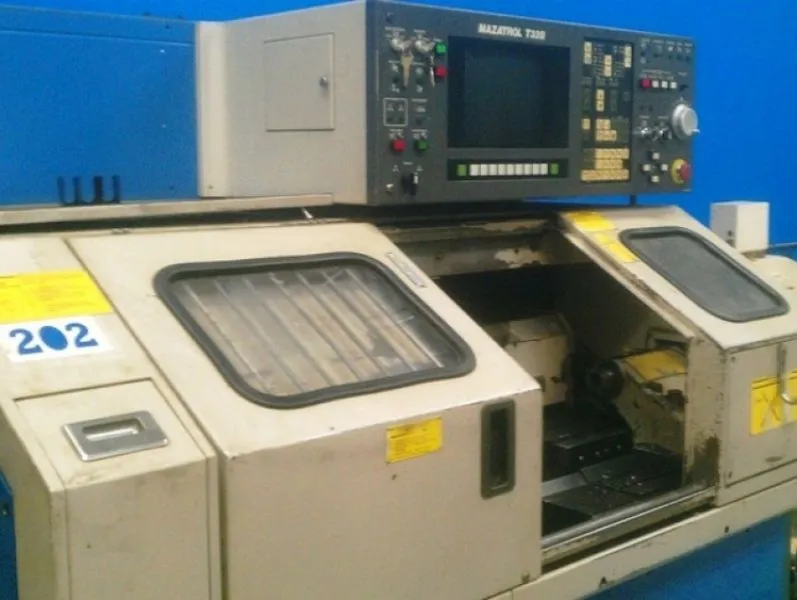

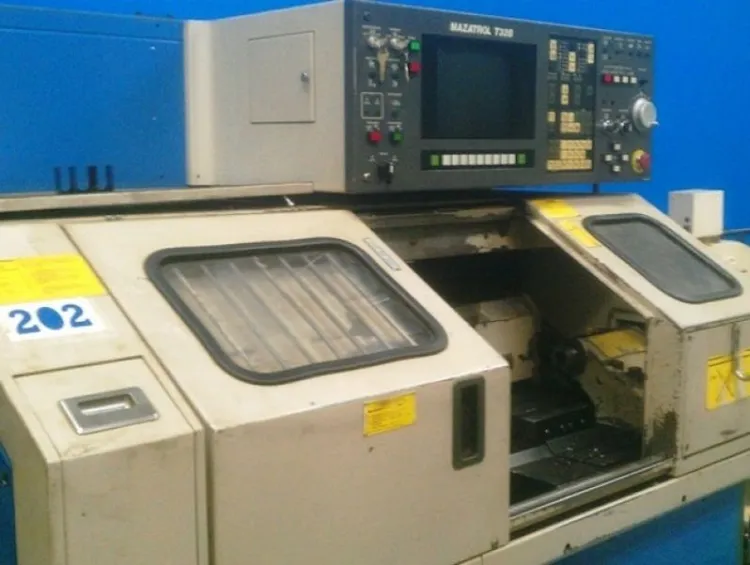

MAZAk QUICK TURN 8N TURNING CENTER 1992
Have one to sell?
ConditionUsed
1 available
Maximum Swing..................11.81 In
Maximum Cutting Diameter.......6.30 In
Maximum Bar Work Size..........1.57 In
X Axis Travel..................3.75 In
Z Axis Travel..................11.42 In
Spindle Nose...................A2-6
Spindle Bore...................1.97 In
Spindle Speed..................60 - 6000 RPM
Number of Turret Positions.....8
Turret Type....................Octagonal Drum
Rapid Traverse ( X & Z Axis ...1180 IPM
Stroke of Tailstock Body.......14.33 In
Tailstock Quill Diameter.......2.17 In
Tailstock Center...............MT # 4
Stroke of Tailstock Quill......3.74 In
Main Motor …………………………..........AC 10 HP
Floor Space Requirements.......66 In X 47 In
Machine Weight.................5730 Lbs.
Mazatrol T-32 Control
Tool Eye
