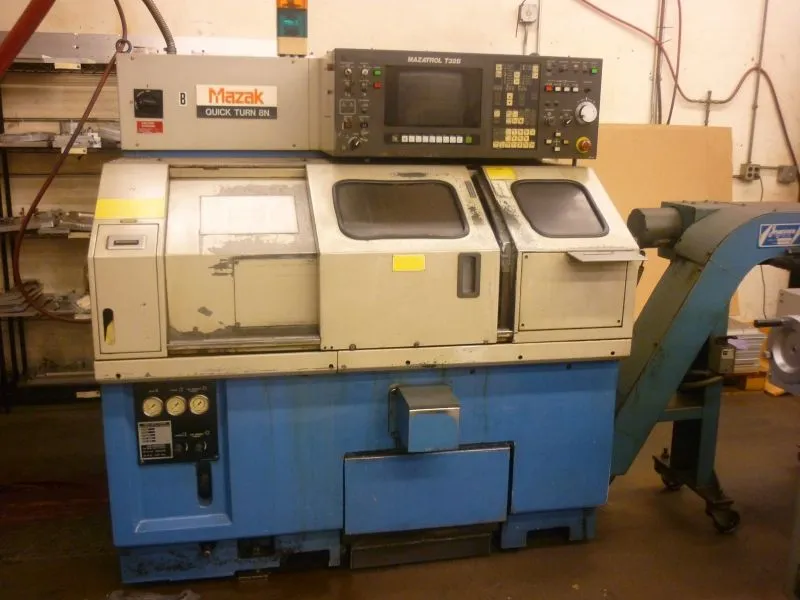

MAZAK QUICK TURN 8N Turning Center
Have one to sell?
ConditionUsed
1 available
Maximum Swing........................................11.81 In
Maximum Cutting Diameter.......................6.30 In
Maximum Bar Work Size............................1.87 In
X Axis Travel..............................................3.75 In
Z Axis Travel..............................................11.42 In
Spindle Nose.............................................A2-6
Spindle Bore..............................................1.97 In
Spindle Speed...........................................60 - 6000 RPM
Number of Turret Positions.......................8
Turret Type...............................................Octagonal Drum
Rapid Traverse ( X & Z Axis ).......................1180 IPM
Stroke of Tailstock Body............................14.33 In
Tailstock Quill Diameter.............................2.17 In
Tailstock Center.........................................MT # 4
Stroke of Tailstock Quill.............................3.74 In
Main Motor …………………………....................AC 10 HP
Floor Space Requirements........................66 In X 47 In
Machine Weight.......................................5730 Lbs.
Mazatrol T-32B Control
Tool Eye
6” Chuck
Chip Conveyor
