MAZAK QUICK TURN 30 CNC Turning Center 1997
Have one to sell?
ConditionUsed
1 available
Max. Swing.....................20.08 In
Max. Cutting Diameter..........12.2 In
Max. Cutting Length............37.63 In
Max. Bar Work Size.............2.76 In
Spindle Speed..................33 - 3300 RPM
Spindle Nose Configuration.....A2-8 In
Spindle Bore Diameter..........3.15 In
X-Axis Travel..................8 In
Z-Axis Travel..................40 In
Turret Type....................Octagonal
Turret Positions...............8
Tool Capacity..................16
Rapid Traverse Rate
X-Axis......................787 IPM
Z-Axis......................984 IPM
Tailstock Center...............MT # 5
Stroke of Tailstock Body.......32.87 In
Stroke of Tailstock Quill......5.12 In
Main Spindle Motor…………………......AC 30 HP
Machine Height.................72.64 In
Floor Space Requirements.......127 In x 76 In
Machine Weight.................11,700 Lbs.
Mazatrol T-Plus Control

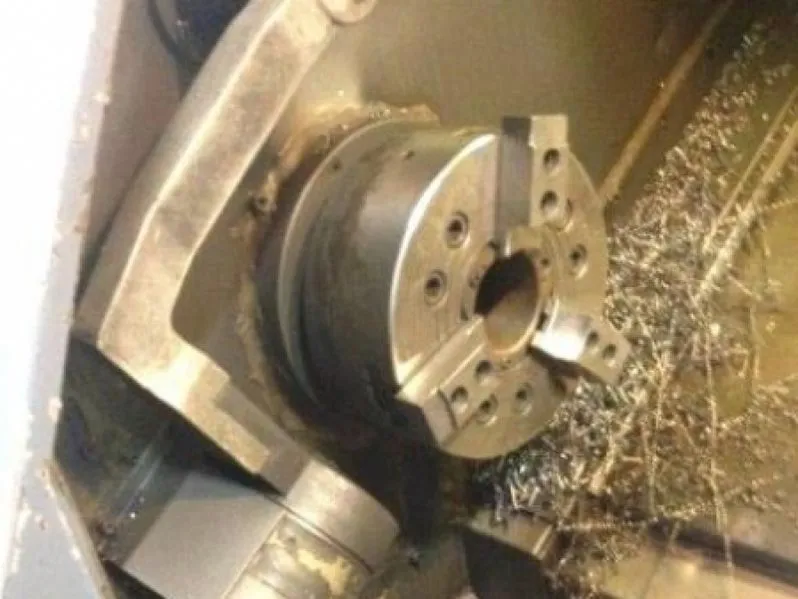

10 Inch Chuck
Chip Conveyor
