Mazak QT-35N/ 1500 CNC Turning Center 1990

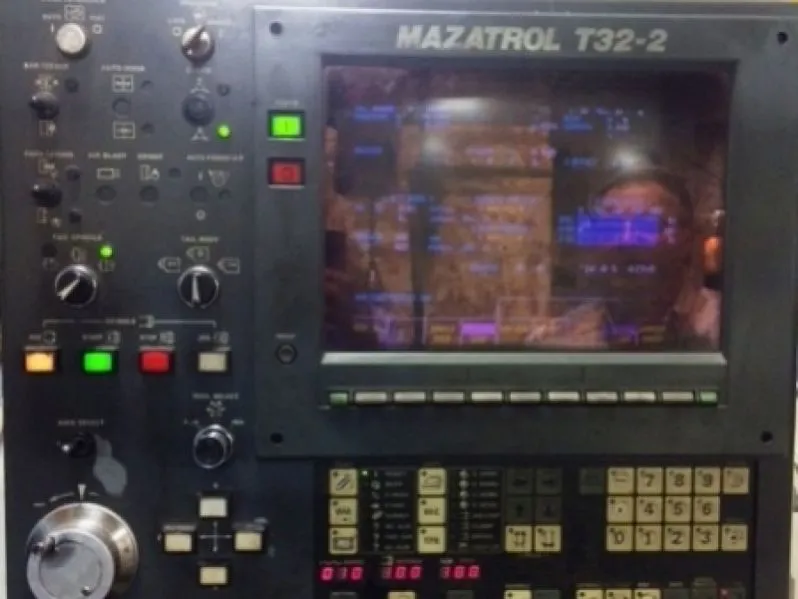

Control ............................. Mazatrol T32-2

Max. Swing.... ...................... 17"

Max. Cutting Diameter ................15.75"

Max. Cutting Length...... ........... 59"

Chuck Size.... ...................... 15"

Spindle Nose.. .......................A2-8

Spindle Bore... ..................... 3.15"

Spindle Motor. ...................... 40 HP

Spindle Speed..... .................. 2,200 RPM

Turret Positions.. .................. 24

Rapids ( X /Z)..... ..................472 / 709 IPM

Tailstock Quill Diameter....... ..... 3.93"

Tailstock Taper...... ............... MT # 5

Stroke of Tailstock Body.... ........54.2"

Weight (Approx)....... ..............15,600 Lbs.
