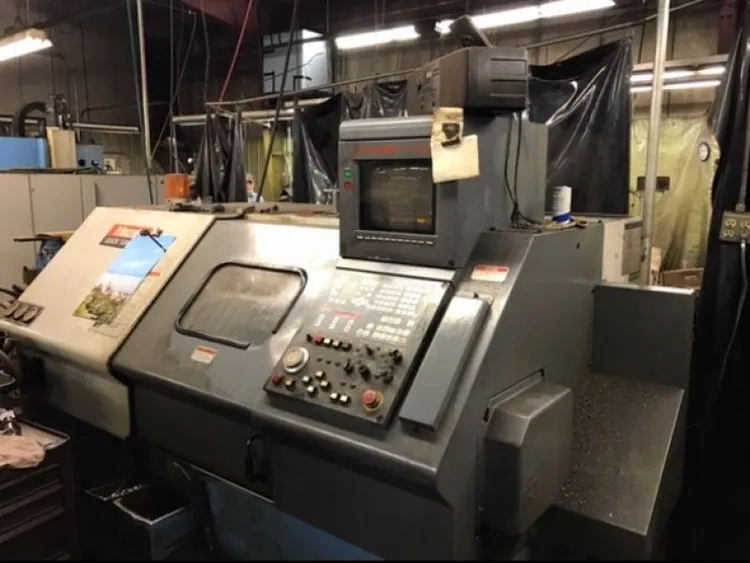

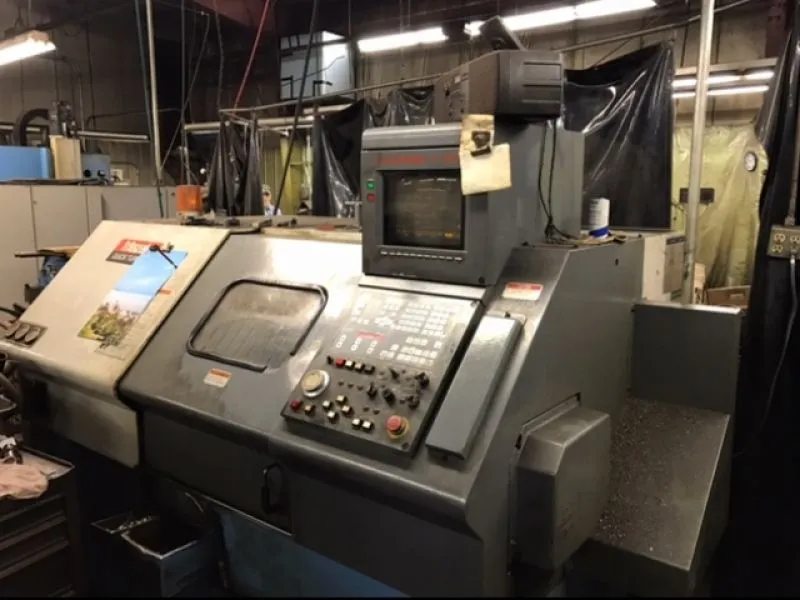

MAZAK QT-20 CNC TURNING CENTER (1996)
Have one to sell?
ConditionUsed
1 available
Machine Details
MAZAK QT-20 CNC TURNING CENTER
NEW IN: 1996
SPECIFICATIONS:
Max. Swing...........................................17.32 In
Swing over Carriage..............................10.00 In
Max. Cutting Diameter...........................11.81 In
Max. Machining Length..........................17.50 In
X-Axis Travel.........................................7.125 In
Z-Axis Travel.........................................20.125 In
Spindle Speed......................................50 - 5000 RPM
Spindle Nose........................................A2-6
Spindle Bore.........................................2.44 In
Number of Tool Turret Positions.............8
Rapid Traverse
X-Axis.......................................1200 IPM
Z-Axis.......................................1300 IPM
Stroke of Tailstock Body.......................18.11 In
Tailstock Center.....................................MT # 4
Stroke of Tailstock Quill.........................5.12 In
Spindle Drive Motor ………………..........AC 20 HP
Machine Weight.....................................8625 Lbs.
Mazatrol T-PLUS Control
10” Inch Chuck
3J Collet
Parts-Catcher
Tool Eye
Spindle Orientation
