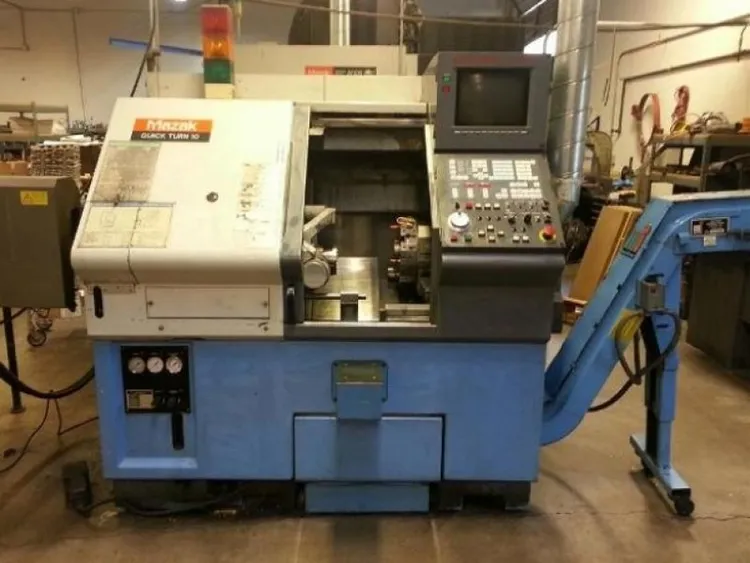

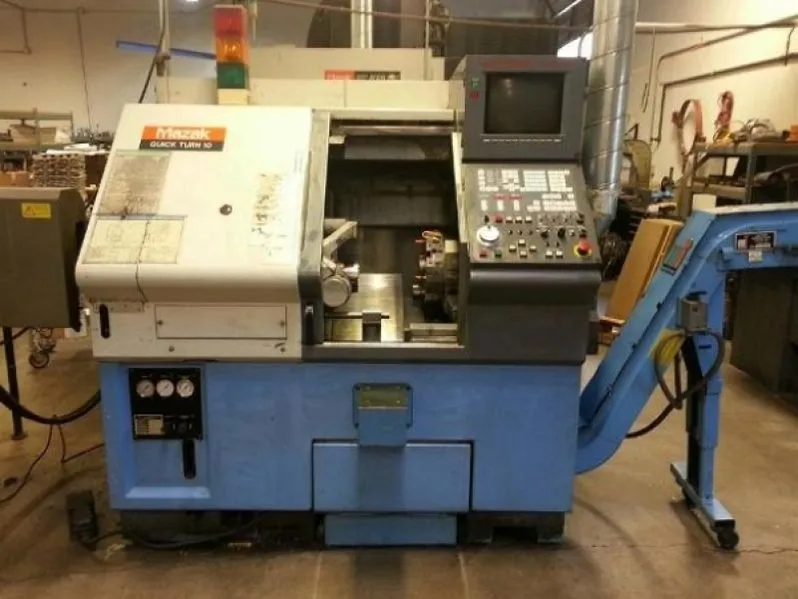

Mazak QT-10 CNC Turning Center w/ LNS Quickload Barloader 1996
Have one to sell?
ConditionUsed
1 available
Chuck Type:
Collet Chuck
Maximum Swing:
11.81"
Maximum Cutting Diameter:
6.30"
Maximum Machining Length:
10.08"
X-Axis Travel:
3.75"
Z-Axis Travel:
11.4"
Spindle Nose/Spindle Bore/Bar Capacity:
A2-5" / 1.97" / 1.57"
Spindle Speed:
60 - 6000 RPM
Spindle Motor:
10 HP
Spindle Torque:
70.8 ft./lbs
Turret Type:
12 Position Drum
Rapid Traverse X, Z:
1200 / 1300 IPM
Tailstock Quill Dia. / Center:
2.17" / MT # 4
Tailstock Body Travel:
12.8"
Machine Dimensions:
79"x53"x76"
Machine Weight:
5,960 lbs.
LNS Quickload QL-60 Autoload Style Barfeed
Parts Catcher
Chip Conveyor
Collet Chuck
12 Position Turret Option
Tailstock
Automatic Tool Eye
Several Size Spindle Liners
Multi-Tap Transformer
Hydraulic Unit
All Available Manuals & Tooling
