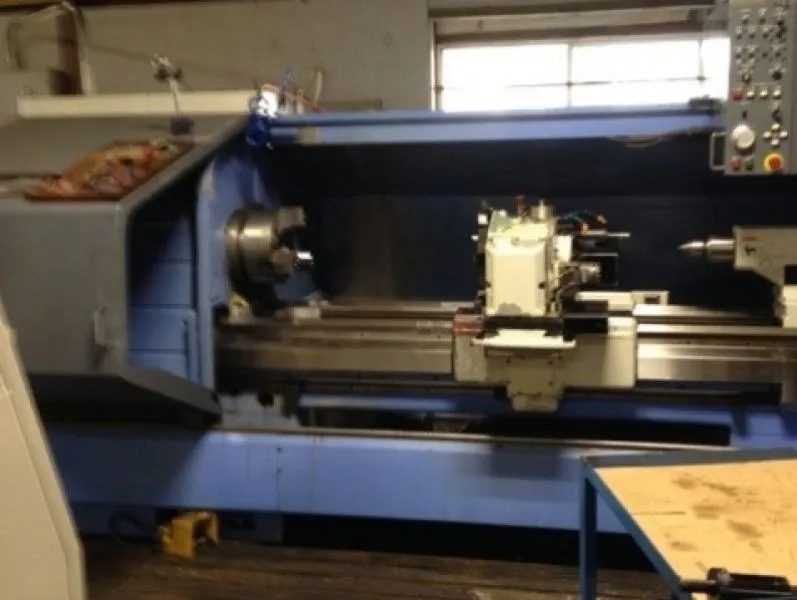

MAZAK M4(N)'s CNC TURNING CENTER Qty: 2 (Flat Bed) - (1) 40" and (1) 60"

Maximum Swing................................. 22"

Maximum Swing over Cross Slide... 11"

Maximum Cutting Diameter............... 26"

Distance Between Centers:

40" Universal.......................... 39.75"

60' Universal........................... 59.85"

Spindle Nose............................... A2‑8"

Spindle Bore................................ 3.15"

Spindle Speed............................. 5 ‑ 2,200 RPM

Number of Speed Ranges......... 3

Spindle Horsepower ….............. 20 HP.

Type of Turrets:

Front.................................... Vertical Disk

Rear..................................... Boring

Number of Tools:

Front.................................... 8

Rear..................................... 6

Tool Size:

Turning & Facing......................... 1" x 1"

Boring Bar Max. Dia. ................... 2"

Axis Travel:

X‑Axis................................... 14.37"

Z‑Axis:

40" Universal.......................... 40.2"

60" Universal.......................... 60.2"

Rapid Traverse:

X‑Axis.................................. 394 IPM

Z‑Axis.................................. 472 IPM

Tailstock:

Spindle Center.......................... MT #5

Spindle Diameter........................ 3.34"

Spindle Travel.......................... 5.12"

Floor Space: (W x L)

40" Universal........................... 114" x 171.5"

60" Universal........................... 114" x 191.7"

Machine Height............................... 77.3"

Machine Weight:

40" Universal........................... 11,500 lbs.

60" Universal........................... 12,790 lbs
