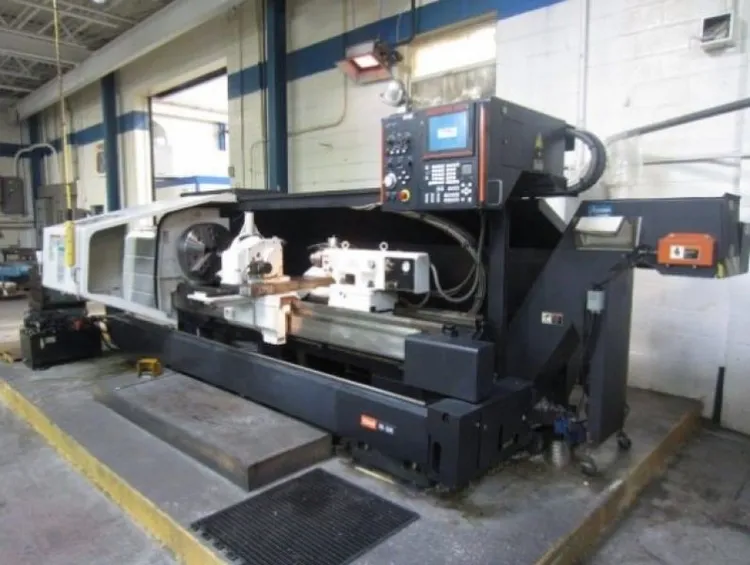

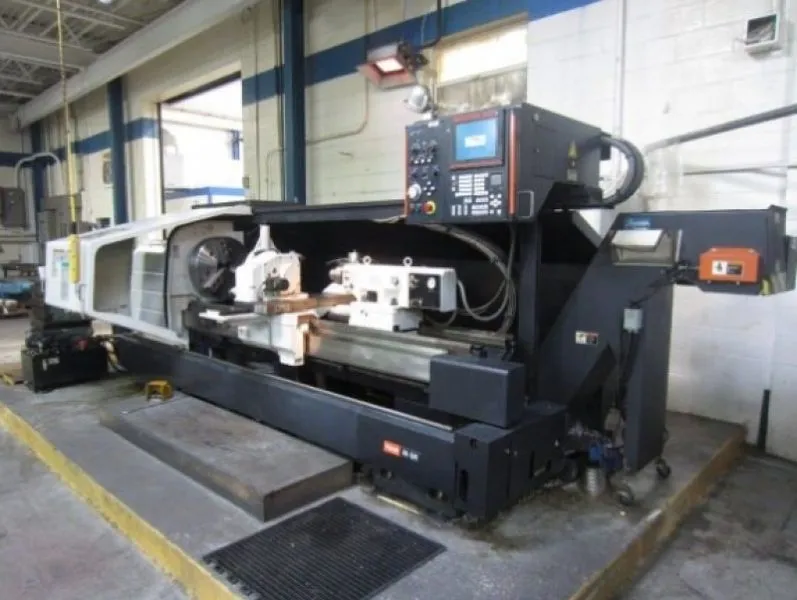

MAZAK M-5N Flat Bed CNC Turning Center
Have one to sell?
ConditionUsed
1 available
MAXIMUM SWING 24.02"
MAXIMUM MACHINING DIAMETER 22.83"
MAXIMUM MACHINING LENGTH 81.89"
MAXIMUM SPEED 2200 RPM
SPINDLE BORE (WITH DRAW BAR) 3.54"
SPINDLE NOSE A2-15
SPINDLE DRIVE 25HP / 30 HP AC
X-AXIS TRAVEL 22.05"
Z-AXIS TRAVEL 80.91"
TAILSTOCK QUILL DIAMETER 3.9"
TAILSTOCK QUILL TRAVEL 5.12"
MACHINE WEIGHT 14,740 LBS
MAZATROL 640T CNC CONTROL
20.75" KITAGAWA 3-JAW CHUCK W/ 5.5" HOLE
8-POSITION FRONT VERTICAL TURRET
6-POSITION REAR HORIZONTAL TURRET
STEADY REST
TAILSTOCK
LIVE CENTER
JORGENSEN CHIP CONVEYOR
ELECTRIC FOOT SWITCH
TOOLING
