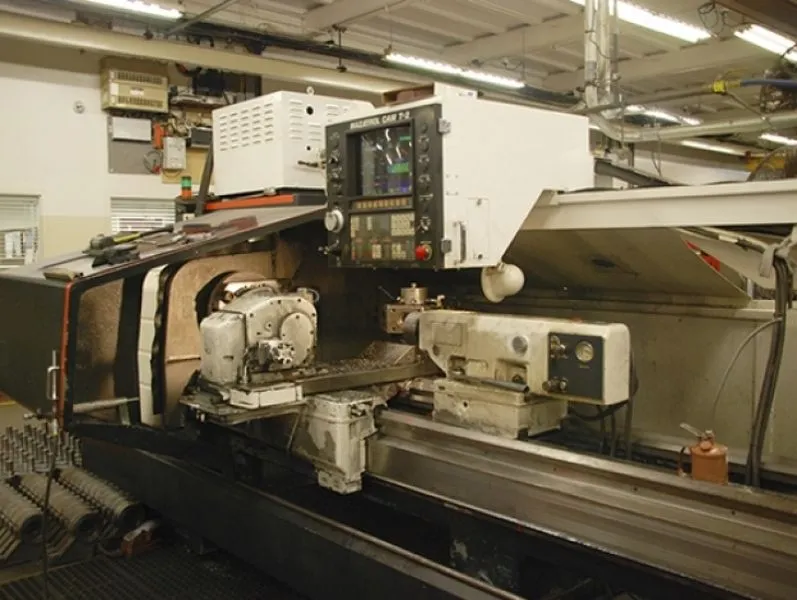

MAZAK M-5 (100") Flat Bed Turning Center
Have one to sell?
ConditionUsed
1 available
Chuck Size 15" Max Diameter Bar Capacity 4.5"
Max Swing Over Bed / Carriage 24" / 13"
Max Turning Diameter 13.75"
Distance Between Centers 101.9"
Spindle Motor 30 HP AC
Spindle Speed 2 - 1800 RPM
Spindle Bore 4.5"
Spindle Nose A2-12
Spindle Torque 868 ft. lbs.
Tools 8 Front OD + 6 Rear ID
Rapid Traverse Rates (X & Z) 394 IPM
X-Axis Travel 22"
Z-Axis Travel 100”
Tailstock Taper MT #5
Machine Dimensions (L x W x H) 209" x 87" x 83"
Machine Weight 16,740 lbs.
