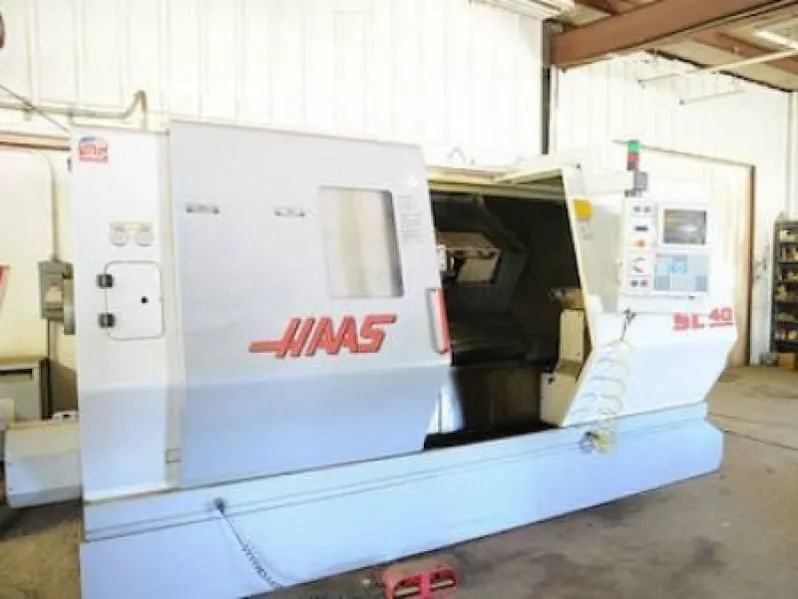

Haas SL-40T CNC Turning Center 1999

Max bar capacity............... 4"

Chuck Size..................... 12”

Max. Swing Over Front Apron.... 40”

Max. Swing Over Cross Slide.... 25”

Max Turning Diameter........... 25.5”

Max Turning Length............. 44”

Travels:

X-Axis....................... 17”

Z-Axis....................... 44”

Spindle Bore................... 4.62”

Spindle Nose................... A2-8

Spindle Speed.................. 2400 RPM

Main motor..................... 55 HP

Turret capacity................ 10 Station

Tailstock Taper................ MT #5

Machine Dimensions............. 190”L x 92”W x 89”H

Machine Weight................. 25,000 lbs.
