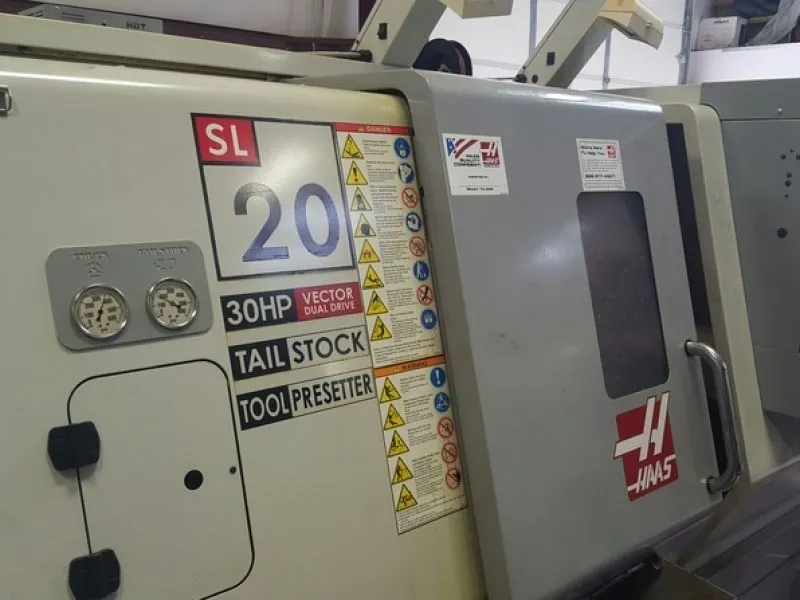

HAAS SL-20T CNC Turning Center
Have one to sell?
ConditionUsed
1 available
Chuck Size:
8" Hyd Chuck/Collet
Maximum Swing Over Bed/Cross Slide:
23" / 9.5"
Maximum Turning Diam. / Length:
10.3"/20"
Center Distance:
24"
Maximum Bar Capacity:
2.0"
X-Axis Travel:
8.45"
Z-Axis Travel:
20"
Spindle Nose / Spindle Bore:
A2-6" / 3.0"
Spindle Speed:
5,000 RPM
Spindle Motor / Torque:
30 HP / 120 ft/lbs.
Turret Type:
8 Position Turret
Rapid Traverse Rates:
710 IPM
Tailstock Taper / Travel:
MT #4 / 20"
Machine Dimensions:
126.5" x 62" x 72"
Machine Weight:
9,000 lbs.
8" 3 Jaw Hydraulic Chuck
Fully Programmable Tailstock
Tool Presetter
Chip Auger
Vector Drive Spindle
