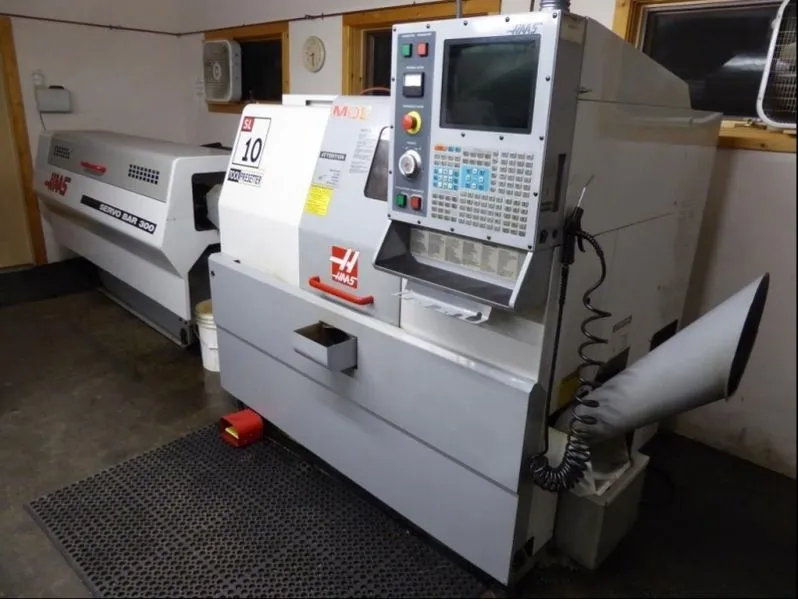

HAAS SL-10 with BARFEED, CNC Turning Center

Control ..................................... Haas

Swing Over Front Apron ............ 16.25"

Swing Over Cross Slide ….......... 8"

X-Axis Travel ............................. 6.25"

Z-Axis Travel ............................. 14"

Rapid Traverse Rates ................ 710 IPM

Chuck Size ............................... 6 "

Max Bar Capacity ..................... 1.75"

Dist. Between Centers ............... 16.5"

Max Turning Dia ........................ 10"

Max Turning Length ................... 14"

Spindle Speeds ........................ 6,000 RPM

Spindle Torque ......................... 75 @ 1,300 RPM

Spindle Motor ........................... 15 HP

Spindle Bore ............................. 2.31"

Draw Tube Bore ......................... 1.81"

Tailstock Taper .......................... MT-3

Tailstock Travel .......................... 4"

Turret Stations ........................... 12

Machine Weight ......................... 4,000 lbs

Machine Dimensions................... 95"L x 54"W x 69"H
