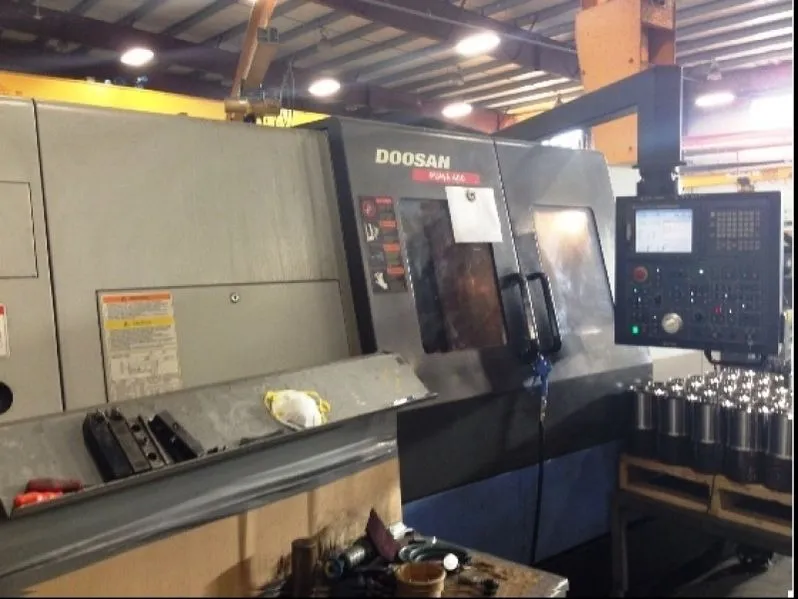

Doosan Puma 400B CNC Turning Center 2007

Control ...............................Fanuc 21iT-B

Max. Swing Over Bed.... .............. 30.3"

Max. Swing Over Carriage........ ..... 23.2"

Distance Between Centers.............. 44.7"

Max. Turn Dia.......... .............. 21.7"

Max. Turn Length...... ............... 41.4"

Spindle Nose.. ........................A2-11

Chuck Size....... .................... 18"

Bar Capacity....... .................. 4.62"

Spindle Bore....... .................. 5.20"

Spindle Motor. ....................... 50 HP

Spindle Speed..... ................... 2,000 RPM

Max. Spindle Torque (30 Min. Rating). 2,419 Ft./Lbs.

Turret Positions.. ................... 12

Tailstock Spindle Taper.... ...........MT # 5

Floor Space With Chip Conveyor.........201" x 94"

Weight (Approx)....... ................18,100 Lbs.
