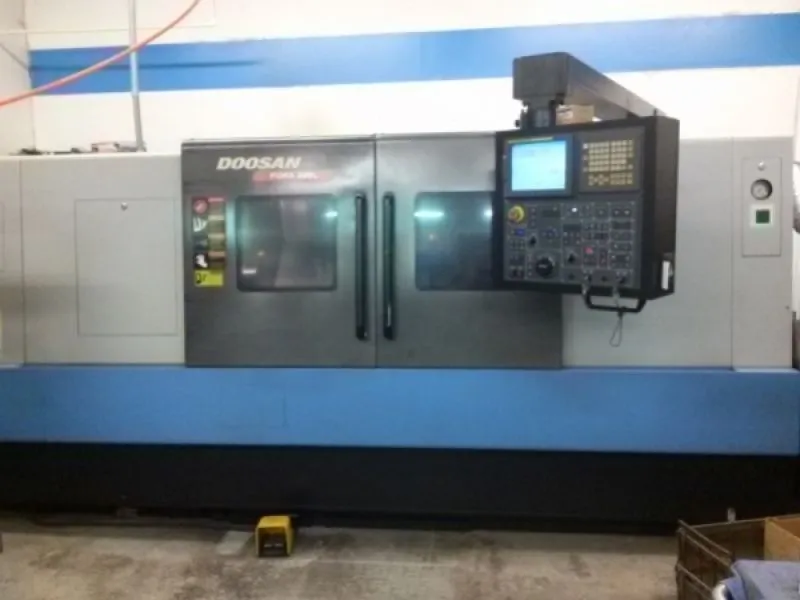

Doosan Puma 300LB CNC Turning Center 2007
Have one to sell?
ConditionUsed
1 available
Control ......................... Fanuc 21iT-B
Swing over bed .................. 23.2”
Swing Over Carriage ............. 14.5”
Max Turning Diameter ............ 15.7”
Distance Between Centers ........ 52.8"
Max Turn Length ................. 51.5"
Chuck Size ...................... 12"
Spindle Bore .................... 3.54"
Draw Tube I.D. .................. 3.03"
Spindle Nose .................... A2-8
Spindle Speed ................... 3500 RPM
Spindle Motor ................... 30 HP
Turret Positions ................ 12
Machine Weight .................. 14,730 lbs
Floor Space ..................... 157” x 75”
Fanuc 21iT Control
12” 3-Jaw Chuck
Hydraulic tail stock with programmable body and quill
Tool Presetter
Steady Rest Bracket
Chip Conveyor
Tool Monitoring System
Way lube Skimmer
Bi-directional servo driven turret
Automatic metered lubrication system
High precision double-nut ball screws
