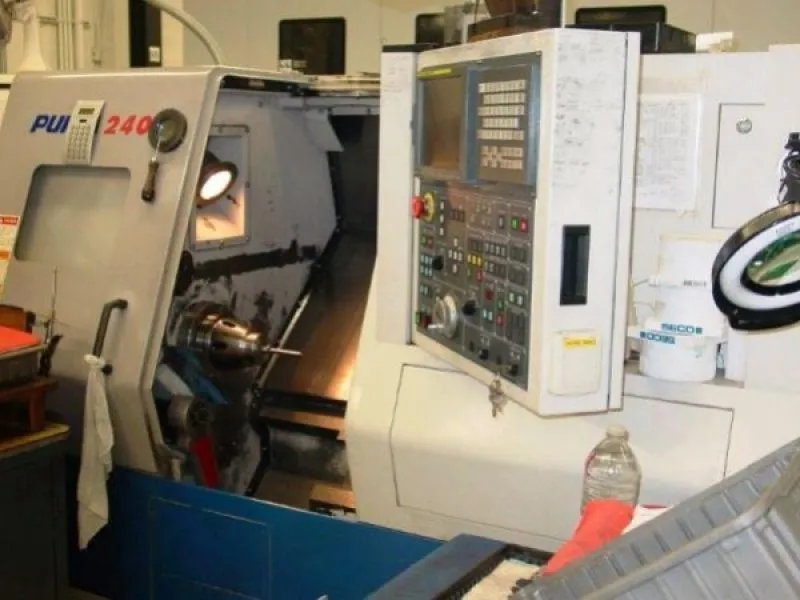

DAEWOO/DOOSAN PUMA 240A CNC TURNING CENTER 2006

SWING OVER BED ................ 21.7"

SWING OVER SADDLE ............. 15.4"

MAX. TURNING DIAMETER ......... 13.8"

MAX. TURNING LENGTH ........... 17.3"

MAX. BAR WORK DIA. ............ 1.75"

X-AXIS TRAVEL ................. 9.5"

Z-AXIS TRAVEL ................. 17.3"

SPINDLE SPEED ................. 6,000 RPM

SPINDLE NOSE .................. A2-5

SPINDLE BORE .................. 2.1"

NO. OF TOOL STATIONS .......... 12

OD TOOL HEIGHT ................ 1.0"

BORING BAR DIAMETER ........... 1.5"

INDEX TIME .................... 0.1 sec.

TAILSTOCK QUILL DIAMETER ...... 3.0"

TAILSTOCK QUILL BORE TAPER .... MT#4

TAILSTOCK QUILL TRAVEL ........ 3.1"

RAPID TRAVERSE RATE X/Z ....... 945/1200 IPM

MAIN MOTOR .................... 15 HP

APPROX. WEIGHT ................9,780
